03/03/2021

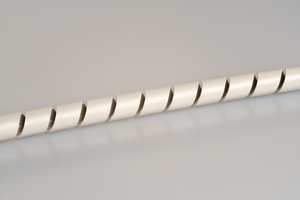

Polyethylene Spiral Binding for enhanced flame protection : SBPEFR9

Spiral binding 10 mm - 100 mm, PE-FR, white, 30 mArticle number: 161-43200

Features

  • Organises and protects cables and hoses
  • Self-extinguishing according to UL94 V2
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters and colours

Certifications & Approvals

Application

The flame-retardant properties of SBPEFR make it suitable for applications in the automobile and electrical industries, where enhanced fire protection is needed.

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour White (WH)
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
Pack Cont. 30m
Package Quantity per Box
PART DESCRIPTION SBPEFR9-PE-FR-WH
Product Family SBPEFR
Product Group Polyethylene Spiral Binding for enhanced flame protection
Short Description Spiral binding 10 mm - 100 mm, PE-FR, white, 30 m
Variant Spiral Binding
Bundle ∅ max. 100mm
Bundle ∅ min. 10mm

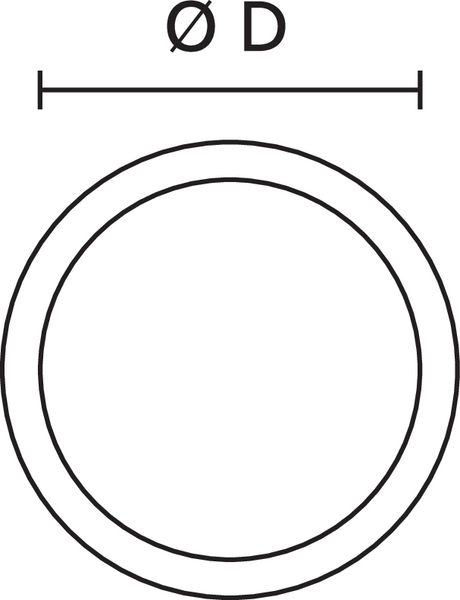

Diameter (D) 9mm
Nominal ∅ 9mm
Nominal ∅ (imperial) 0.38"

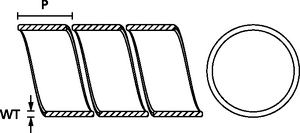

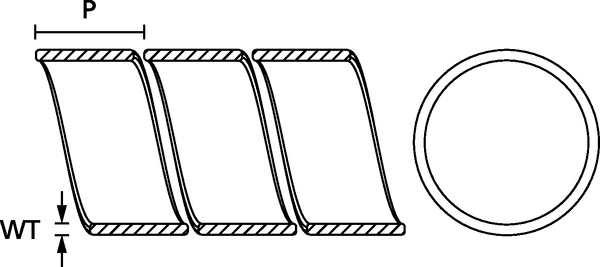

Pitch (P) 12.5mm
Wall (WT) 1.4mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2, FMVSS 302, Type B
Halogenfree No
Hazardous good No
Intermittent Operating Temperature +120°C
Material Polyethylene (PEFR), Flame retardant
Nato number 9330-12-165-3025
Operating Temperature - °C -60 °C to +80 °C, intermittent +120 °C
Specifications
EAN / GTIN-13 5022660548987
Packaging 1 - Height (m) 0.135m
Packaging 1 - Length (m) 0.375m
Packaging 1 - Qty 30
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.01519
Packaging 1 - Weight (kg) 1.78kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.135m
Packaging 3 - Length (m) 0.375m
Packaging 3 - Qty 30
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0152
Packaging 3 - Weight (kg) 2.28kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.184m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1920
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.137
Packaging 4 - Weight (kg) 166.92kg
Packaging 4 - Width (m) 0.8m
Reel Length 30m
Weight 1.71kg
ETIM 6.0 EC002604
ETIM 7.0 Key EC002604
