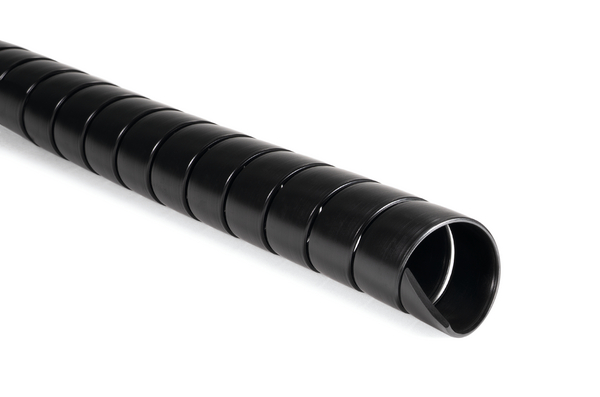

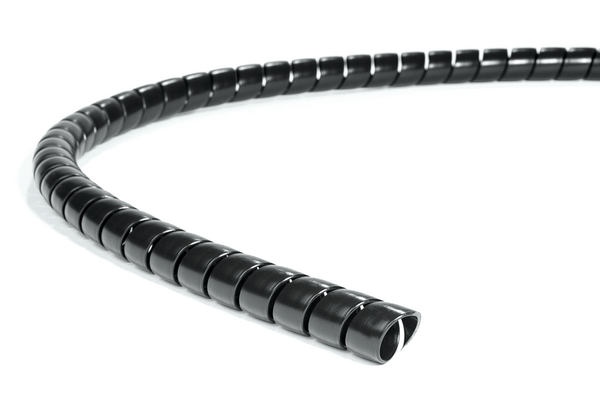

Polypropylene spiral binding for high resistance against oil, wide pitch SPF20

SPF, Article number: 162-20200

Features

  • Heavy-walled and very robust
  • Excellent protection from mechanical stress
  • Very high abrasion resistance
  • Very good resistance to oils
  • Available in diameters up to 50 mm
  • Ideal for larger cable bundles

Certifications & Approvals

Application

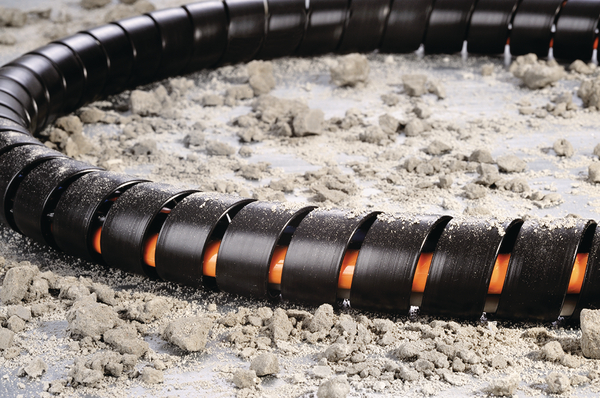

Wherever high abrasion resistance and stable cable inserting are important, the use of SPF spiral binding is recommended. SPF is suitable for wind industry, plant construction and the petrochemical industry.

SPF is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Spiral binding 20 mm - 23 mm, PP, black, 1 m
GLOBAL PART DESCRIPTION SPF20-PP-BK
Pack Cont. 1pc.
Package Quantity per pcs.
Product Family SPF
Product Group Polypropylene spiral binding for high resistance against oil, wide pitch
Variant Spiral Binding
Bundle ∅ max. 23mm
Bundle ∅ min. 20mm
Bundlediamter Range ETIM (Braided Sleeving) 20-23

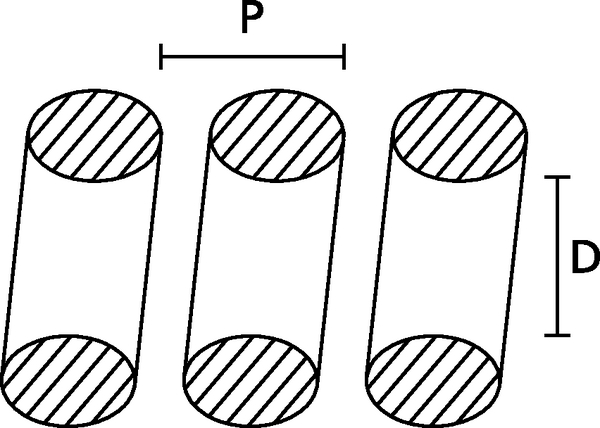

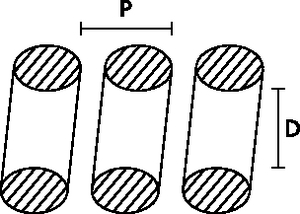

Diameter (D) 20mm
Length (L) 1m
Nominal ∅ 20mm
Outside Ø (OD) 23mm
Pitch (P) 18mm
Wall (WT) 1.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +100°C
Material Polypropylene (PP)
Operating Temperature - °C -30 °C to +100 °C
Specifications
EAN / GTIN 4031026124100
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 1.0m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.0004
Packaging 1 - Weight (kg) 0.078kg
Packaging 1 - Width (m) 0.02m
Packaging 2 - Height (m) 0.39m
Packaging 2 - Length (m) 1.0m
Packaging 2 - Qty 200
Packaging 2 - Type Bag
Packaging 2 - Volume (m³) 0.1326
Packaging 2 - Weight (kg) 15.6kg
Packaging 2 - Width (m) 0.34m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1200
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 114.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.078kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
