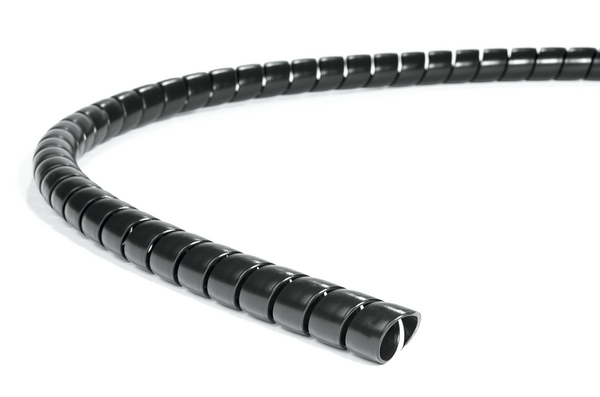

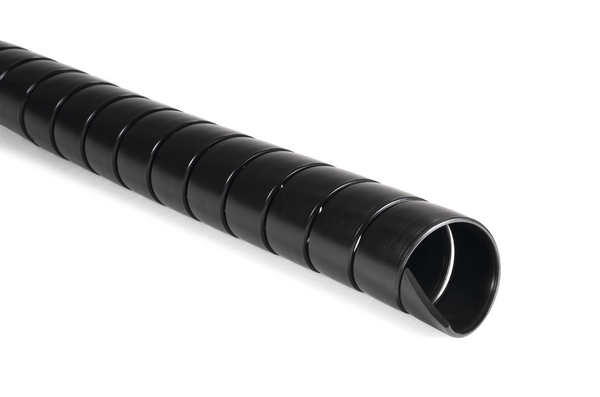

Polypropylene spiral binding for high resistance against oil, wide pitch SPF30
SPF, Article number: 162-20300
Features
- Heavy-walled and very robust
- Excellent protection from mechanical stress
- Very high abrasion resistance
- Very good resistance to oils
- Available in diameters up to 50 mm
- Ideal for larger cable bundles
Certifications & Approvals
Application

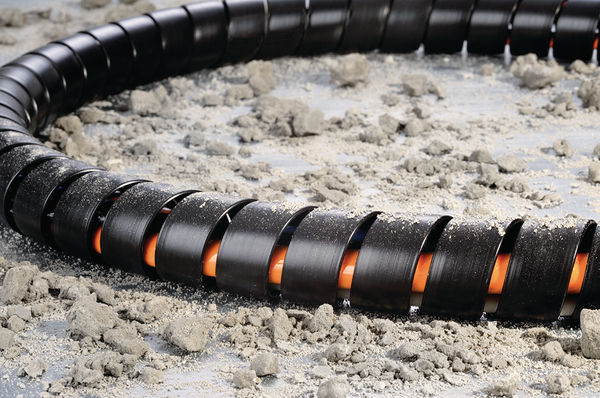

Wherever high abrasion resistance and stable cable inserting are important, the use of SPF spiral binding is recommended. SPF is suitable for wind industry, plant construction and the petrochemical industry.
SPF is suitable for following markets and industries
-
Wind Energy Sector
-
Electronics Industry
-
Chemical Industry
More products in this product group
Polypropylene spiral binding for high resistance against oil, wide pitch >| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | Spiral binding 30 mm - 34 mm, PP, black, 1 m |
| GLOBAL PART DESCRIPTION | SPF30-PP-BK |
| Pack Cont. | 1pc. |
| Package Quantity per | pcs. |
| Product Family | SPF |
| Product Group | Polypropylene spiral binding for high resistance against oil, wide pitch |
| Variant | Spiral Binding |
|
|
|
| Bundle ∅ max. | 34mm |
| Bundle ∅ min. | 30mm |
| Bundlediamter Range ETIM (Braided Sleeving) | 30-34 |

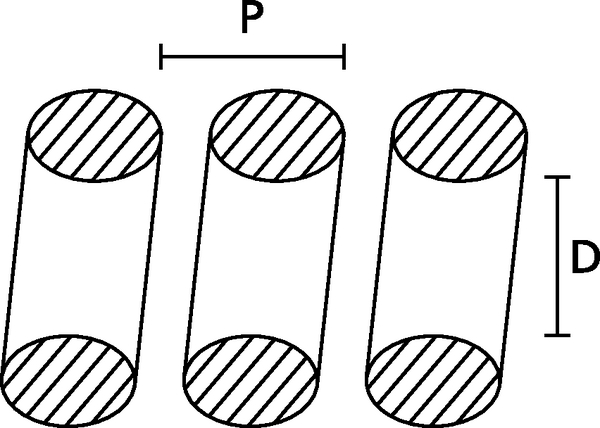

| Diameter (D) | 30mm |
| Length (L) | 1m |
| Nominal ∅ | 30mm |
| Outside Ø (OD) | 34mm |
| Pitch (P) | 20mm |
| Wall (WT) | 2mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Intermittent Operating Temperature | +100°C |
| Material | Polypropylene (PP) |
| Operating Temperature - °C | -30 °C to +100 °C |
| Specifications |
|
| EAN / GTIN | 4031026124124 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 1.0m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.0009m³ |
| Packaging 1 - Weight (kg) | 0.168kg |
| Packaging 1 - Width (m) | 0.03m |
| Packaging 2 - Height (m) | 0.39m |
| Packaging 2 - Length (m) | 1.0m |
| Packaging 2 - Qty | 100 |
| Packaging 2 - Type | Bag |
| Packaging 2 - Volume (m³) | 0.1326m³ |
| Packaging 2 - Weight (kg) | 16.8kg |
| Packaging 2 - Width (m) | 0.34m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 600 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 121.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.168kg |
| ETIM 5.0 | EC002604 |
| ETIM 6.0 | EC002604 |
