** CAT5E Products will become obsolete on December 23rd 2020 - Please contact HT Data for more information **

RapidNet 4 Port Category 5e : RN04U5E-CAKJXX-10.0M

Cassette to Keystone Jack, Article number: 859-37952

Features

  • Exceeds Category 5e performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Ideal solution for 'to the desk' installations
  • Compatible with Euro and LJ6C Modules
  • Can fit in both floor boxes and wall boxes
  • Backward compatible with Category 5e and voice

Application

RapidNet from HellermanTyton is the unique, pre-terminated and pre-tested solution that offers uncompromised performance and quality. RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standards of mission critical installations where network down time and poor systems performance is not an option. The 4 core bundled cable have been specially designed to eliminate potential alien cross talk issues and uses a clear tape to reduce the bundle, ensuring a high quality, well managed installation. The 4 port RapidNet cassette presents 4 RJ45 ports in one cassette, with 6 cassettes fitting into the standard RapidNet™ patch panel. The cassettes simply push into the panel, snapping in with a push down clip. A fully loaded panel presents the standard 24 ports in 1U of space.

Application 2 The RapidNet CAT5E solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing CAT5 and voice network infrastructure.
Colour Violet (VT)
Connector Type RJ45 UTP

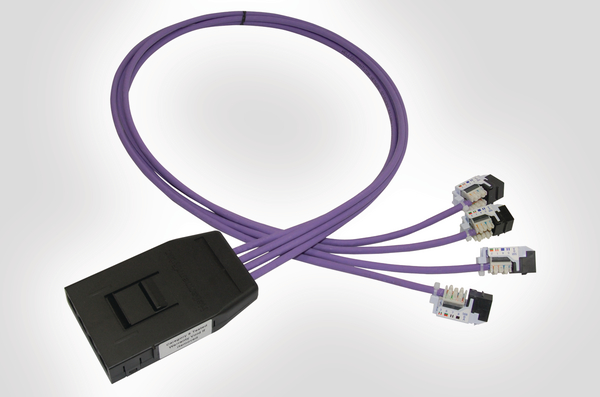

Description The RapidNet 4 Port Cassette to Keystone Jack is pre- terminated with 4 RJ45 ports in the cassette at one end and keystone jacks at the other end, with 6 cassettes fitting in to a standard 4 Port RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The cassette to Keystone Jack option is designed to support ‘to the desk’ installations, with the Keystone Jack fitting being easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted in face plates.
Features and Benefits Backward compatible with C5 and voice
Internet Customer Notice ** CAT5E Products will become obsolete on December 23rd 2020 - Please contact HT Data for more information **
Pack Cont. 10m
PART DESCRIPTION RN04U5E-CAKJXX-10.0M
Performance Category Category 5E (Class D)
Port count 4
Product Family Cassette to Keystone Jack
Product Group RapidNet 4 Port Category 5e
Technical Description The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. The Keystone Jacks are available in a range of colours and can be packaged with a heat-shrink pull sock to protect the jacks during installation. The Keystone Jacks are manufactured to a uniform length or a staggered length is available on request to allow effective cable management. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 5e standards. All RapidNet Category 5e cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m. 
Type RN04U5E-CAKJXX-10.0M
Depth (D) 116mm
Height (H) 28mm
Length (L) 10m
Width (W) 70mm
Dimensions W x H x D 70 mm x 28 mm x 116 mm
EAN / GTIN 5022660936272
