** CAT5E Products will become obsolete on December 23rd 2020 - Please contact HT Data for more information **

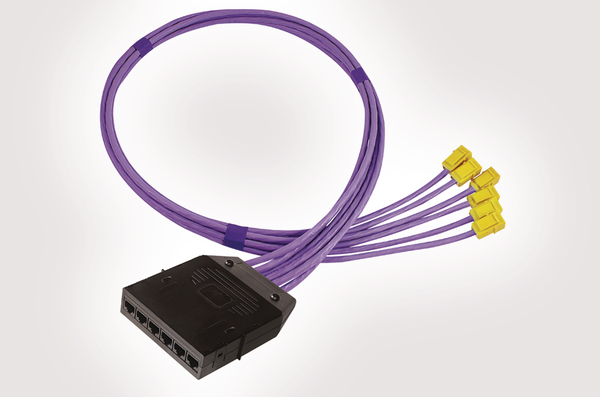

RapidNet 6 Port Category 5e : RN06U5E-CAGTYE-10.0M

Cassette to GST Keystone Jack, Article number: 859-38237

Features

  • Exceeds Category 5e performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Reduce installation times by up to 85%
  • Ideal solution for ‘to the desk’ installations
  • Compatible with angled Euro and LJ6C adaptor modules
  • 5* different colour options
  • Backward compatible with Category 5 and voice
Colour Violet (VT)
Connector Colour Yellow (YE)
Connector Type RJ45 UTP
Description The RapidNet Category 5e UTP Cassette to Keystone Jacks is pre-terminated with 6 RJ45 ports in a cassette with 6 Keystone Jacks at the other end, with 4 cassettes fitting into a standard RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The 6 Port RapidNet Cassette to Keystone Jack option gives the installers and end users added flexibility at the desk or ‘work area’ end. The Keystone Jack can be easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted in face plates. The Category 5e UTP keystone jacks are available in 5 colours (Black (BK), Blue (BL), Green (GN), Red (RD) and Yellow (YL)). This allows for differentiation of looms at the patch panel aiding identification of access levels, paths, routes or systems within the network.
Internet Customer Notice ** CAT5E Products will become obsolete on December 23rd 2020 - Please contact HT Data for more information **
Pack Cont. 10.0m
PART DESCRIPTION RN06U5E-CAGTYE-10.0M
Performance Category Category 5E (Class D)
Port count 6
Product Family Cassette to GST Keystone Jack
Product Group RapidNet 6 Port Category 5e
Technical Description The RapidNet Category 5e UTP solution is designed using UTP cable loosely bundled in a 5 around 1 configuration which maintains performance and reduces alien crosstalk. The cassette is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6A standards. All RapidNet Category 5e cables are made with LS0H material, complying with the latest European fire ratings. NB: Part Numbers given are for 10m looms in the standard 5 colours Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE). Lengths are available from 10m to 90m in 0.5m increments. *An additional 7 colour options are available on request, contact HellermannTyton Sales Desk for further details.
Depth (D) 130mm
Height (H) 27mm
Length (L) 10.0m
Width (W) 107mm
Dimensions W x H x D 107 mm x 27 mm x 130 mm
EAN / GTIN 5022660143977
