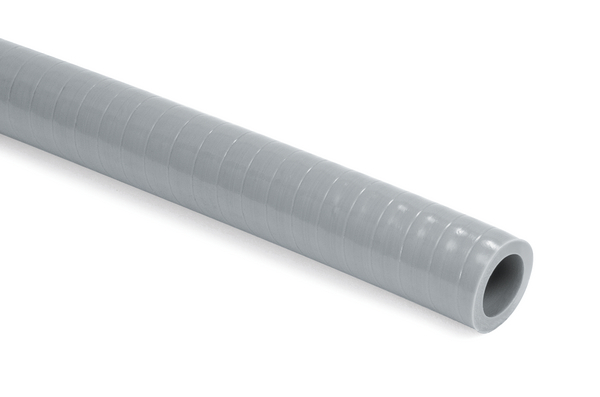

Spiral-reinforced PVC Conduits PSRSC20

PSRSC Conduit, Article number: 166-40303

Features

  • Flexible
  • Easy to clean outside surface
  • Withstands some torsional movement
  • Self-extinguishing
  • Easy to feed cables

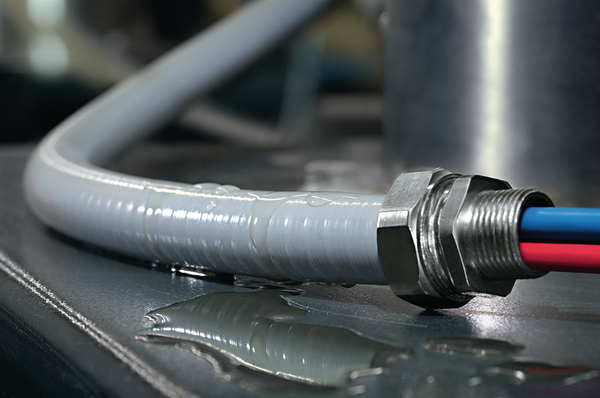

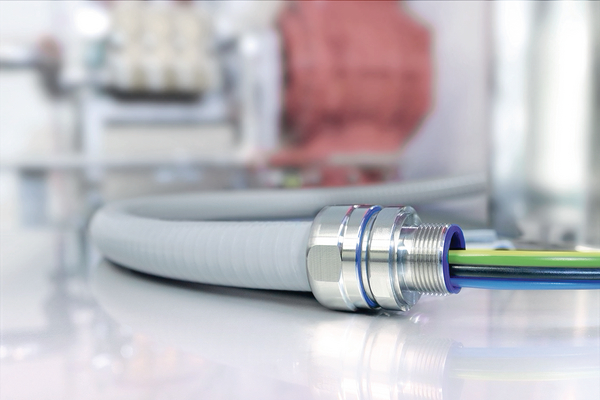

  • Can be used with PSR fittings and PSRSC metal fittings
  • Colour: grey; black, orange (highly flexible), green (oil resistant) or blue (high temperature resistant) upon request

Certifications & Approvals

Application

Machine building, plant construction, shipbuilding, automation, electrical installations

PSRSC Conduit is suitable for following markets and industries

Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) Spiral-reinforced PVC Conduit ø20mm grey 30 m
Features and Benefits Flexible conduit with smooth bore and smooth cover, PVC reinforcement and flexible PVC cover
GLOBAL PART DESCRIPTION PSRSC20-PVC-GY
Pack Cont. 30m
Package Quantity per Reel
Product Family PSRSC Conduit
Product Group Spiral-reinforced PVC Conduits

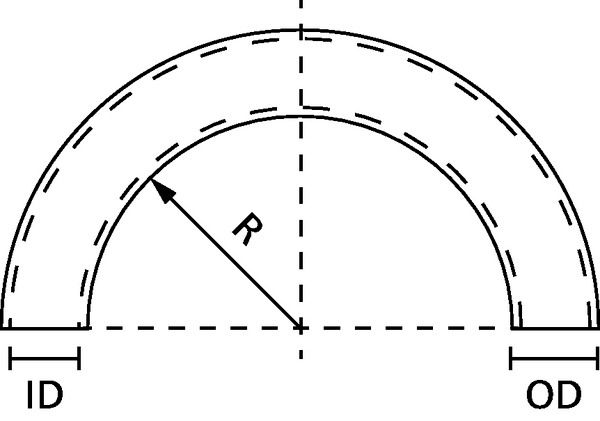

Diameter (D) 16.0mm
Flexibility Flexible
Inside Ø (ID) 16.0mm
Min. Bending Radius (R) 70mm
Nominal ∅ 20mm
Nominal ∅ (imperial) 13/16"
Outside Ø (OD) 21.1mm
Weight 174g/m
ELV compliant Dir. Art. 4 (2) YES
Flammability self-extinguishing according to EN IEC 61386
Hazardous good No
IP-Rating IP68
Material Polyvinylchloride (PVC)
Operating Temperature - °C -5 °C to +70 °C
Plain inside surface (Yes/No) ETIM Yes
Plain ouside surface (Yes/No) ETIM Yes
Specifications
Specifications EU 10/2011
EAN / GTIN 4031026326566
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.44m
Packaging 1 - Qty 30
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.02904
Packaging 1 - Weight (kg) 5.1kg
Packaging 1 - Width (m) 0.44m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 600
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 123.0kg
Packaging 4 - Width (m) 0.8m
Reel Length 30m
Weight 5.1kg
ETIM 5.0 EC001177
ETIM 6.0 EC001177
