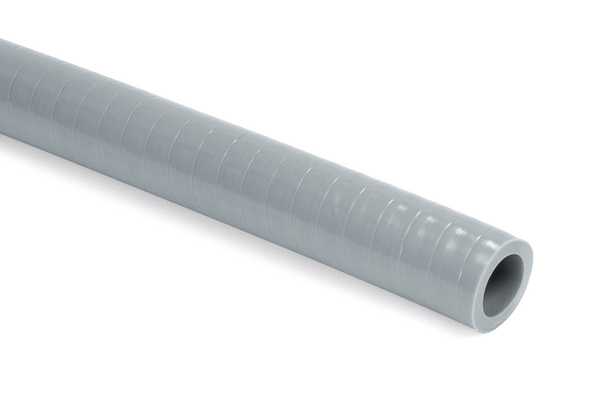

Spiral reinforced conduit, nom⌀40mm, OD=41.8mm, ID=35.4mm, grey, 30m
Art.-No. 166-40306
| PSRSC40-PVC-GY
|
Copied
- Flexible
- Easy to clean outside surface
- Withstands some torsional movement
- Self-extinguishing
- Easy to feed cables
- Can be used with PSR fittings and PSRSC metal fittings
- Colour: grey; black, orange (highly flexible), green (oil resistant) or blue (high temperature resistant) upon request
Show more
Show less
Request quote
More products in this product group:
| Application | Machine building, plant construction, shipbuilding, automation, electrical installations |
| Colour | Grey (GY) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | PSRSC40-PVC-GY |
| Package Content | 30m |
| Package Content packed in | Reel |
| Product Family | PSRSC Conduit |
| Product Group | Spiral-reinforced PVC Conduits |
| Short Description | Spiral-reinforced PVC Conduit ø40mm grey 30 m |
| Type | PSRSC40 |
| Weight/Unit | 0.52266kg |
| CE Certification | Yes |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | EN IEC 61386 |
| Hazardous Goods | No |
| IP-Rating | IP68 |
| Operating Temperature | -5 °C to +70 °C |
| Plain inside surface (Yes/No) | Yes |
| Plain ouside surface (Yes/No) | Yes |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | EU 10/2011 |
| Country of Origin | GB |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026326597 |
| Packaging 1 - Height (m) | 0.25m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 30 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.09m³ |
| Packaging 1 - Weight (kg) | 15.68kg |
| Packaging 1 - Width (m) | 0.6m |
| Packaging 3 - Height (m) | 1.12m |
| Packaging 3 - Length (m) | 1.2m |
| Packaging 3 - Qty | 180 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 1.0752m³ |
| Packaging 3 - Weight (kg) | 98.2788kg |
| Packaging 3 - Width (m) | 0.8m |
| Packaging 4 - Height (m) | 1.264m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 180 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.213m³ |
| Packaging 4 - Weight (kg) | 120.279kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 30m |
