Splitter Assemblies SMA-MX1RB

Connectorised, Article number: 857-40450

Features

  • Quick and easy to install
  • Allows for retrospective addition without disturbing existing fibre
  • Pre-assembled splitter tray and drop patch module
  • 1 x 8 LC Simplex connectorised splitter pre-installed on splice tray
  • Ruggidised 900µm output fibres
  • 250µm/900µm fibre routing and management
Colour White (WH)
Connector Type LC-APC
Description LC-APC Splitter Assembly
GLOBAL PART DESCRIPTION SMA-MX1RB
Product Family Connectorised
Product Group Splitter Assemblies

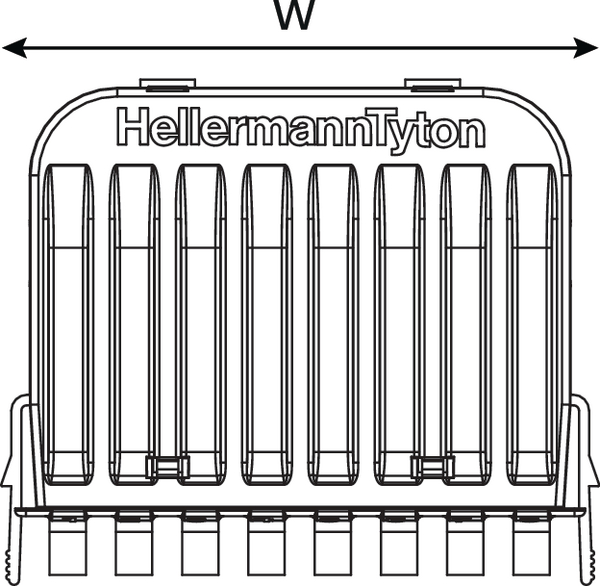

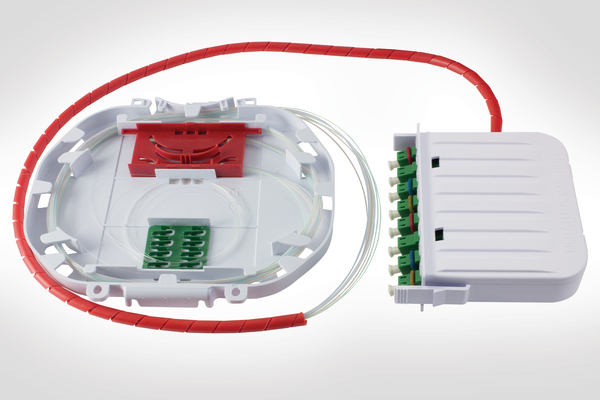

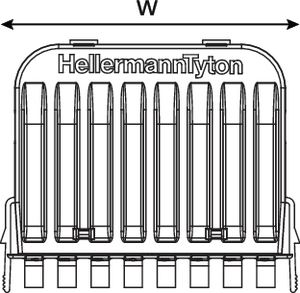

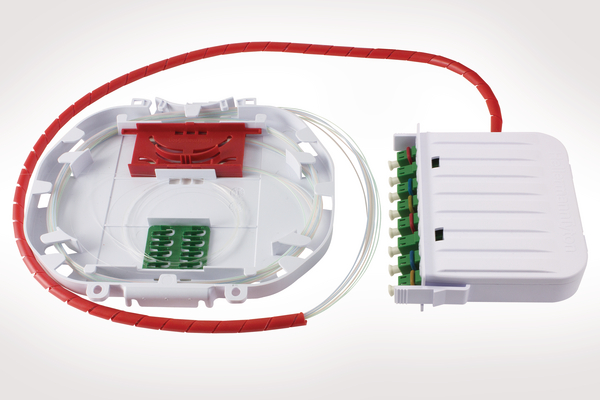

Technical Description The splitter assembly consists of a pre-assembled fibre splice tray with a single pre-installed 1 x 8 splitter and 1 3A splice bridge. The splitter is pre-connectorised with 8 LC Simplex 900µm output fibres. These are routed to an 8 port LC Simplex drop patch module and connected to 8 LC Simplex adaptors.

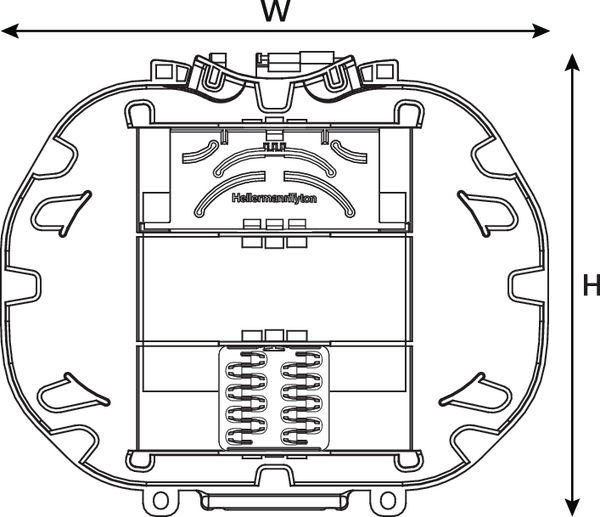

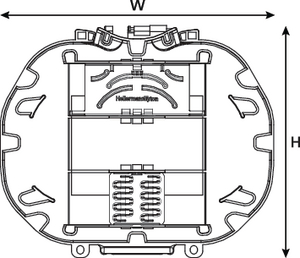

Type of Tray Versatile Routing ME

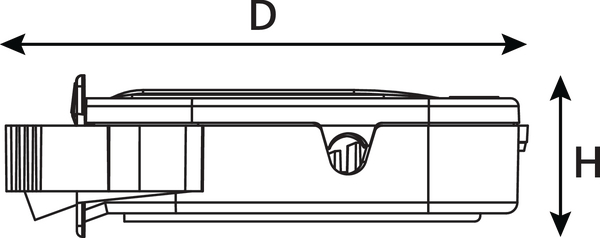

Depth (D) 95.3mm
Height (H) 29.5mm
Width (W) 112.8mm
EAN / GTIN 5022660156823
