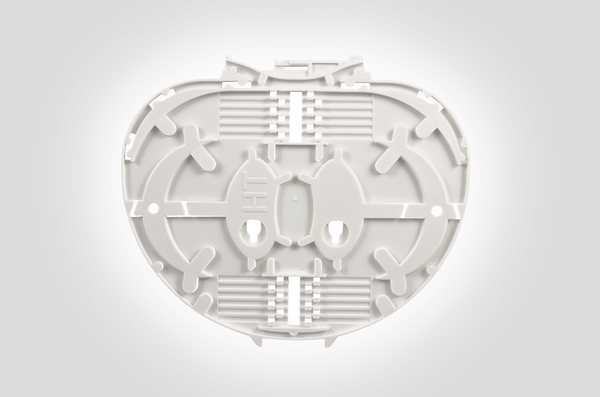

Integrated Routing Fibre Optic Splice Tray TRAY-SC-B-IR-2X3A-12

IR Single Circuit SC-B, Article number: 857-40335

Features

  • Positive fibre management minimum bend radius 30mm
  • 2 fibre entry ports
  • Moulded splice holder fins for heatshrink (3A) splice protectors
  • Maximum splice capacity of 12 fibres
Colour White (WH)

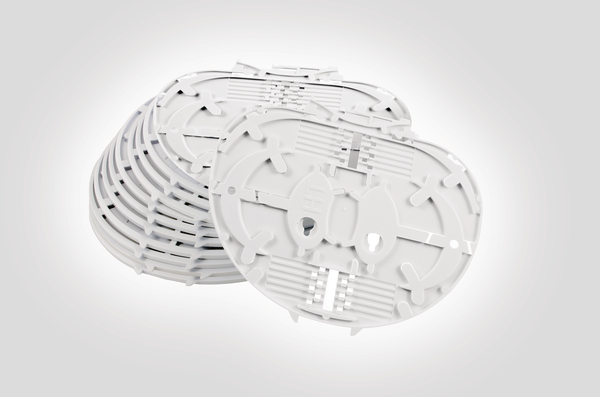

Content 12 x IR Single Circuit White SC-B Heatshrink (3A) Trays
GLOBAL PART DESCRIPTION TRAY-SC-B-IR-2X3A-12
Package Quantity per Bag
Product Family IR Single Circuit SC-B
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 12
Short Description IR Single Circuit SC-B Tray in White.

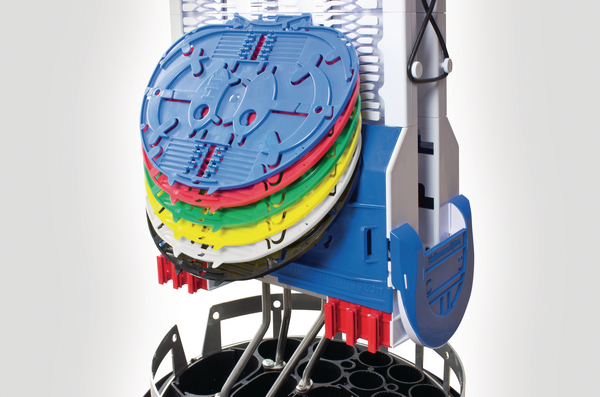

Technical Description The Integrated Routing (IR) single circuit SC-B trays is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x3.5mm. The tray is available in two styles which accept either 3A or ANT/Crimp splice protectors. The IR single circuit SC-B tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
Type of Tray Integrated Routing SC-B
Depth (D) 3.5mm
Height (H) 125mm
Width (W) 148mm
EAN / GTIN 5022660126284
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.2kg
ETIM 5.0 EC001123
ETIM 6.0 EC001123
