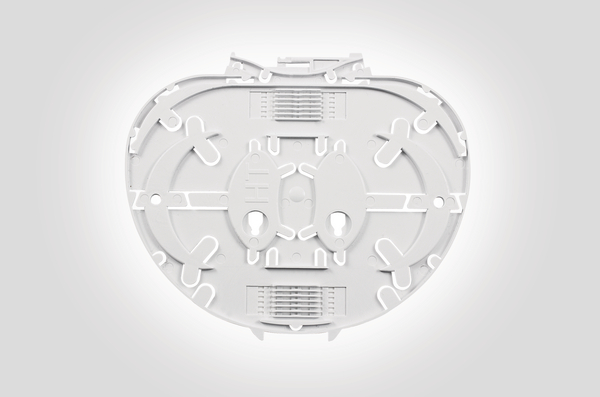

SC-B-IR Splice Trays with 12 ANT Moulded Splice Holder Fins
Art.-No. 857-40336 | TRAY-SC-B-IR-2XANT-12 Details

  • Positive fibre management minimum bend radius 30mm
  • 2 fibre entry ports
  • Moulded splice holder fins for Crimp (ANT) splice protectors
  • Maximum splice capacity of 12 fibres

Request your individual offer now

Colour White (WH)
Content 12 x IR Single Circuit White SC-B Heatshrink (ANT) Trays
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION TRAY-SC-B-IR-2XANT-12
Pack Cont. 12pcs.
Package Content packed in Bag
Product Family IR Single Circuit SC-B
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 12
Short Description SC-B-IR Splice Trays with 12 ANT Moulded Splice Holder Fins
Technical Description The Integrated Routing (IR) single circuit SC-B trays is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x3.5mm. The tray is available in two styles which accept either 3A or ANT/Crimp splice protectors. The IR single circuit SC-B tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
Type TRAY-SC-B-IR-2XANT-12
Type of Tray Integrated Routing SC-B

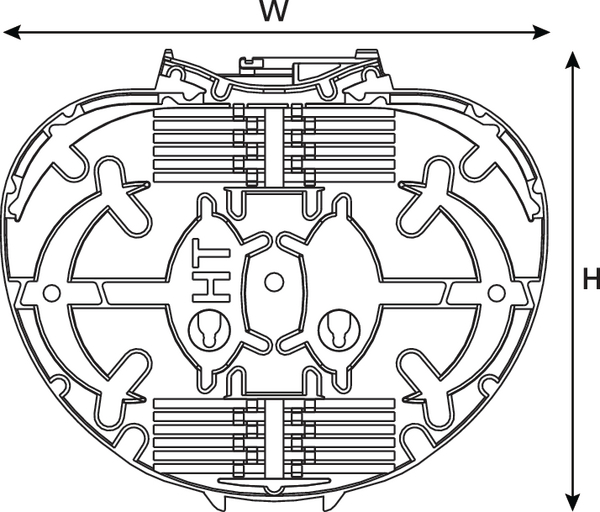

Depth (D) 3.5mm
Height (H) 125mm
Width (W) 148mm
Country of Origin GB
GTIN-13 / EAN 5022660130106
Packaging 1 - Weight (kg) 0.2kg
ETIM 7.0 Key EC000762
ETIM 8.0 Key EC000762
ETIM 9.0 Key EC000762
