SE-MKII-IR Splice Trays with 4 Way Ribbon Splice Bridges
Art.-No. 857-40636 | TRAY-SE-MKII-IR-2X4 WAY RIB-06 |

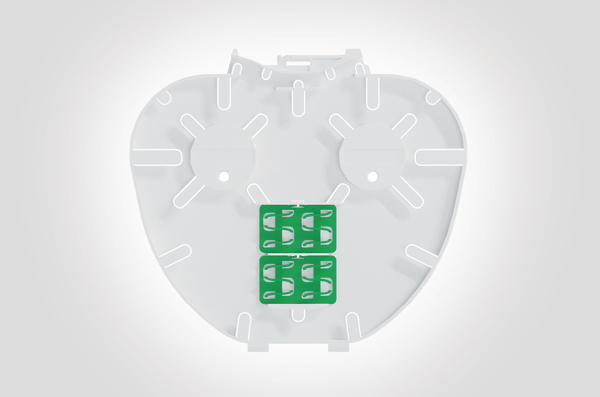

WhiteIR SE MKII Tray with 2 x 4 Way Ribbon splice holders.

IR SE MKII Trays in various colours.

IR SE MKII Splice Tray.

IR SE MKII Splice Tray.

IR SE MKII Splice Tray.

Positive fibre management - minimum bend radius 15mm
2 fibre entry ports
2 mounting positions for splice inserts fitted with 4 way ribbon splice holders
Maximum splice capacity of 24 fibres (double stacked)

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Integrated Routing Fibre Optic Splice Tray >

Base Data

Colour	White (WH)
Content	6 x IR Single Element MKII Trays, 12 x 4 way ribbon splice protector holders
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	TRAY-SE-MKII-IR-2X4 WAY RIB-06
Pack Cont.	6pcs.
Package Content packed in	Bag
Product Family	IR Single Element SE MKII
Product Group	Integrated Routing Fibre Optic Splice Tray
Qty Trays	6
Short Description	SE-MKII-IR Splice Trays with 4 Way Ribbon Splice Bridges
Technical Description	The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 7mm. The IR single element tray is fitted with 2 x 4 way ribbon splice splice protector holders at the front of the tray for ease of fibre measurement and installation. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
Type	TRAY-SE-MKII-IR-2X4 WAY RIB-06
Type of Tray	Integrated Routing SE MKII

Product Dimensions

Depth (D)	7mm
Height (H)	124mm
Width (W)	150mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660174728
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Weight (kg)	0.3kg

More Information

ETIM 7.0 Key	EC000762
ETIM 8.0 Key	EC000762
ETIM 9.0 Key	EC000762
