Integrated Routing Fibre Optic Splice Tray : TRAY-SE-MKII-IR-2X3A-06

IR Single Element SEArticle number: 857-40635

Features

  • Positive fibre management - minimum bend radius 30mm
  • 2 fibre entry ports
  • 2 mounting positions for splice inserts fitted with 3A splice holders
  • Maximum splice capacity of 24 fibres (double stacked)
Colour White (WH)
Content 6 x IR Single Element MKII Trays, 12 x Heatshrink (3A) splice protector holders
Pack Cont. 6pcs.
Package Quantity per Bag
PART DESCRIPTION TRAY-SE-MKII-IR-2X3A-06
Product Family IR Single Element SE
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 6

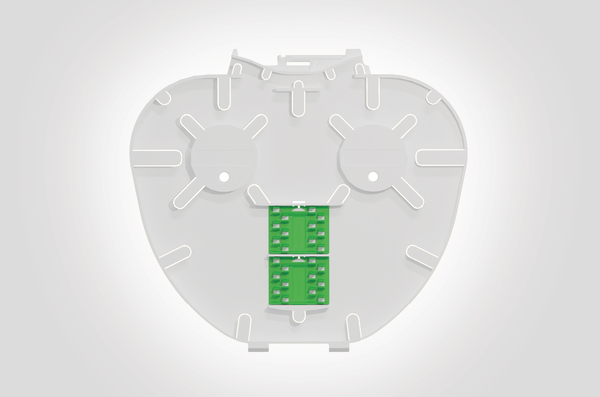

Technical Description The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 7mm. The IR single element tray is fitted with 2 x 3A splice protector holders at the front of the tray for ease of fibre measurement and installation. The maximum splice capacity of the tray is based on 24 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
Type of Tray Integrated Routing SE MKII
Depth (D) 7mm
Height (H) 124mm
Recov. ∅ d 2.4mm
Width (W) 150mm
Material Acrylonitrile Butadiene Styrene (ABS)
EAN / GTIN-13 5022660174711
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.3kg
ETIM 6.0 EC001123
ETIM 7.0 Key EC001123
