Clip On Cable Marker 4.3-5.3 mm violet Imprint 7
Art.-No. 561-03677 | WIC3-7-PA66-VT Details

  • Fast and easy to use pre-printed nylon snap-on marker
  • Ideal where termination is completed or for maintenance and repair
  • Markers lock together to give perfect text alignment
  • Vibration resistant markers, WIC markers lock onto wire and cable tightly

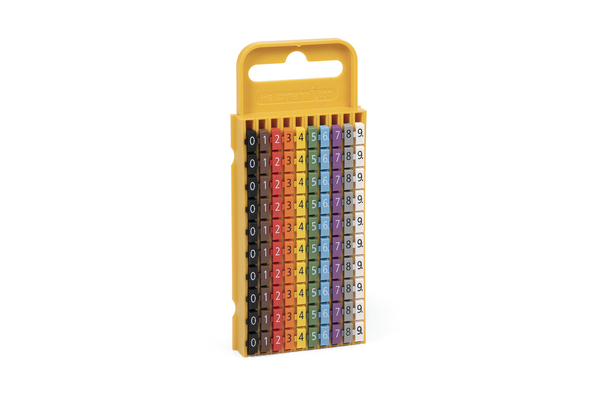

  • WIC tool holds 20 WIC marker in all three sizes
  • Gripping system locks markers onto wire and resists rotation
  • Available in Yellow, White and international resistor colour code
  • Popular 2 digit markings such as L1, L2, L3, PE are available in Yellow or colour code
  • Dispenser colour denotes marker size: WIC0 (GN), WIC1 (RD), WIC2 (BU), WIC3 (YE)
Show more

Request your individual offer now

Application WIC markers are applied to the wire by simply clicking them on using the WIC tool or if no tool is available they can easily be applied by hand. Simply insert the marker strip into the back of the tool and slide down to the end and simply press the marker down over the wire. Twist the marker off and apply the next marker. Once all the markers are on slide them together until the locking mechanism engages.
Application Method Applying markers can be done either by hand or with the ergonomically designed applicator tool. Simply snap the marker onto the wire, twist and then reapply next required marker.
Application Tool WIC Tool
Colour Violet (VT)
Fixation Method snap-on
Local order number W3NO.7VT(100)

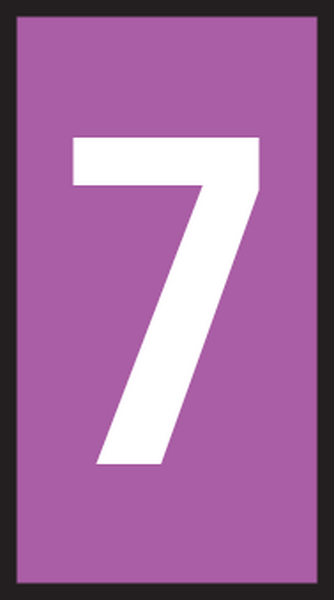

Marking Text 7
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in Box
PART DESCRIPTION WIC3-7-PA66-VT
Product Family WIC, snap on
Product Group Pre-printed Cable Markers
Short Description Clip On Cable Marker 4.3-5.3 mm violet Imprint 7
Variant Other
With label space No
Bundle Diameter max (Metric) 5.30mm
Bundle ∅ 4.30-5.30mm
Bundle ∅ min. 4.30mm
Height (H) 9.60mm
Length (L) 3.0mm
Outside ∅ max. (imperial) .208"
Outside ∅ min. (imperial) .170"
Print Method Hot foil
Weight/Unit 0.00033kg
Width (W) 8.00mm
Wire Size Range (mm²) 4.00-6.00mm²
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Pre-Printed Yes
Specifications
Specifications EN 60062, IEC 304
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026210582
Packaging 1 - Height (m) 0.053m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 500
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00061
Packaging 1 - Weight (kg) 0.356kg
Packaging 1 - Width (m) 0.062m
Packaging 2 - Height (m) 0.2m
Packaging 2 - Length (m) 0.4m
Packaging 2 - Qty 15000
Packaging 2 - Type Box
Packaging 2 - Volume (m³) 0.024
Packaging 2 - Weight (kg) 11.01kg
Packaging 2 - Width (m) 0.3m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
