Accessory for WIC1, WIC2, WIC-Series, black, 100pcs. (WICA-ACT-BK)
Art.-No. 561-06000 | WICA-ACT-BK-PA66HIRHS-BK Details

  • Fast and easy to use pre-printed nylon snap-on marker
  • Ideal where termination is completed or for maintenance and repair
  • Markers lock together to give perfect text alignment
  • Vibration resistant markers, WIC markers lock onto wire and cable tightly
  • WIC tool holds 20 WIC markers in all four sizes
  • Gripping system locks markers onto wire and resists rotation
  • Available in yellow, white and international resistor colour code
  • Popular 2 digit markings such as L1, L2, L3, PE are available in yellow or colour code
  • Dispenser colour denotes marker size: WIC0 (green), WIC1 (red), WIC2 (blue), WIC3 (yellow)
  • Two accessories available to identify cables from 2.5 mm² to 95 mm² (WICA-AC10-25 and WICA-ACT-BK)
Show more

Request your individual offer now

Application The WIC range of pre-printed cable markers easily snap onto cables and wires. The WIC tool ensures an easy application of the markers – simply insert the markers into the tool, slide down and press the markers onto the wire while twisting. Markers for fibre cables should be applied by hand. All markers come with a locking mechanism to ensure perfect text alignment. The two WICA accessories are ideal for marking cables of larger diameters (2.5 mm² - 95 mm²).
Application Method Applying markers can be done either by hand or with the ergonomically designed applicator tool. Simply snap the marker onto the wire, twist and then reapply next required marker.
Colour Black (BK)

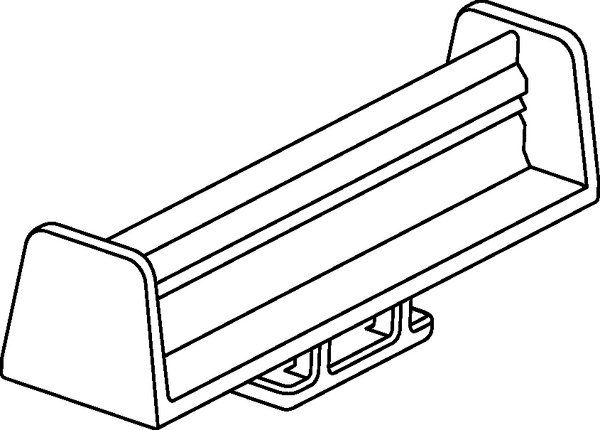

Description WIC adapter set for fixing with cable ties
Fixation Method snap-on
Marker tiles per carrier 8
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION WICA-ACT-BK-PA66HIRHS-BK
Pack Cont. 100pcs.
Package Content packed in set
Product Family WIC, snap on
Product Group Pre-printed Cable Markers

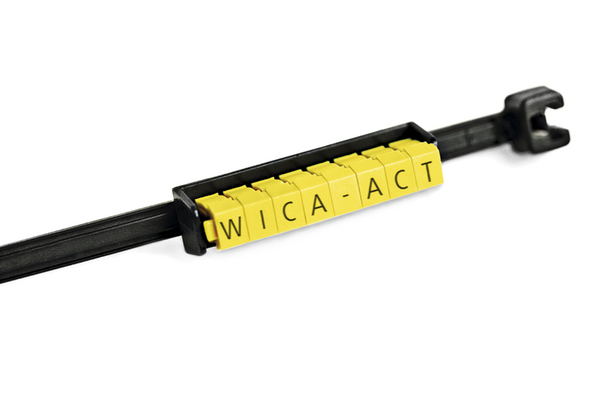

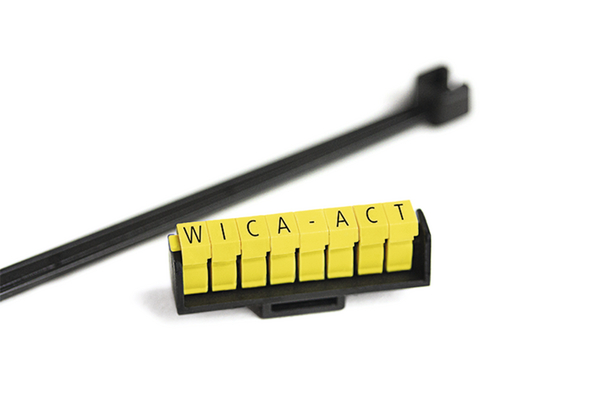

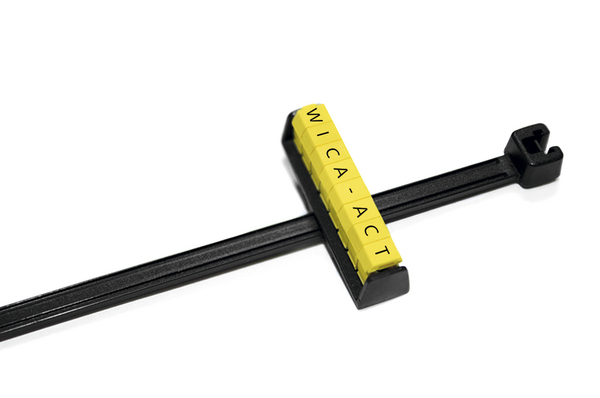

Short Description Adapter with cable tie for cable 5.5-9.5 mm black up to 8 markers
Type WICA-ACT-BK
Variant Other
With label space No
Bundle Diameter max (metric) 38.0mm
Bundle ∅ 3.0-38.0mm
Bundle ∅ min. 3.0mm

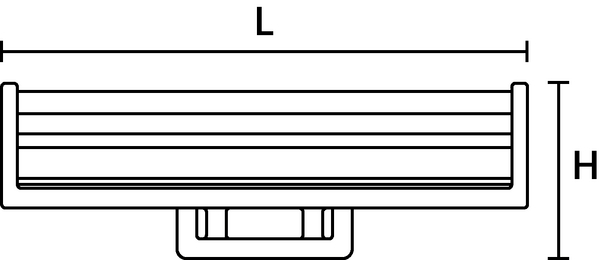

Height (H) 8.9mm
Length (L) 26.7mm
Print Method inkjet print
Weight/Unit 0.130197kg

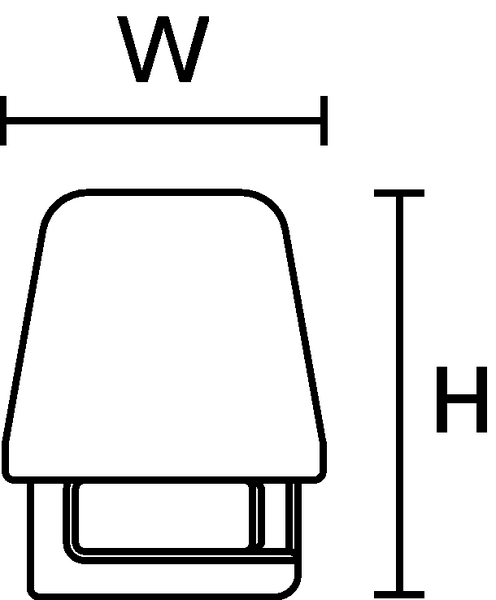

Width (W) 7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications EN 60062, IEC 304
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026542805
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.305m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00107
Packaging 1 - Weight (kg) 0.130198kg
Packaging 1 - Width (m) 0.14m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.3m
Packaging 3 - Qty 10
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.012
Packaging 3 - Weight (kg) 1.54198kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 144.358kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
