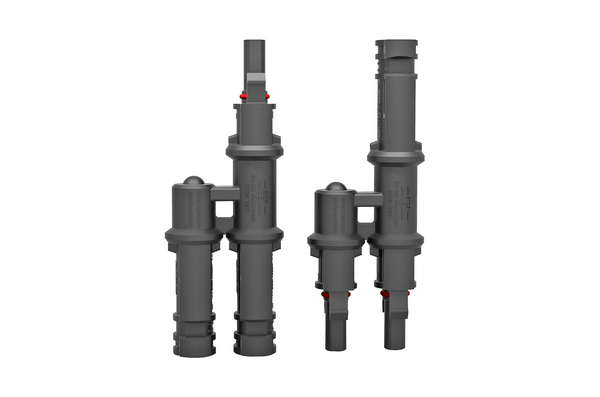

Solar Branch Connectors - IP68 Connectors for the Solar Industry
Art.-No. 147-50004 | HT-SBC21-PPE-BK |

Copied

    • Ratchet click-fit design / NEC Locking system for safety
    • Lightweight, durable V0 material / UL94-V0
    • IP68 Rated
    • UV Resistant
    • IEC1500V / UL1500V
    • HT-SBC21 2to1

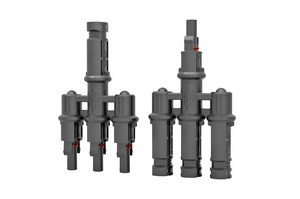

    • HT-SBC31 3to1
    • TUV / UL / IEC / CE Standards
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Solar
    Colour Black (BK)
    Description The HT-SBC21 & HT-SBC31 solar cable connectors are constructed using high-quality materials, ensuring long-term reliability. Their lower contact resistance and higher
    current transfer capability contribute to superior product efficiency. HT-SBC21 & HT-SBC31 connectors are rated IP68 for waterproofing and are suitable for use
    within a wide operating temperature range from -40°C to 85°C.
    Local order number HT-SBC21
    Material Polyphenylenether (PPE)
    PART DESCRIPTION HT-SBC21-PPE-BK
    Package Content 2pcs.
    Package Content packed in Bag
    Product Family IP68 Rated Branch Connectors for the Solar Industry
    Product Group Solar Branch Connectors 2to1 and 3to1
    Short Description Solar Branch Connectors - IP68 Connectors for the Solar Industry
    Type HT-SBC21
    DC Current (+Accuracy) 1500V
    DC Voltage (+Accuracy) 1500V
    Height (H) 200mm
    Flammability UL 94 V0
    Halogen-free Yes
    IP-Rating IP68
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026743035
