For mounting prior to wiring : HTWD-BWR-40X40
Wire securing clamp 40x40 mm, PC/ABS, black, Article number: 181-50440
Features
- Quickly and easily fastend on raised mounting points with a 1/4 turn of a screwdriver
- Wires easily inserted and firmly held in place
- Anchor of retainer remains inside raised mounting point and does not protrude below surface of duct base
- Reduces strain on duct fingers especially at corners and eliminates bulging against sidewall
- Available for all duct sizes of width and height larger than 40
- Fits snuggly in duct for minimal loss of installation space
Certifications & Approvals
Application

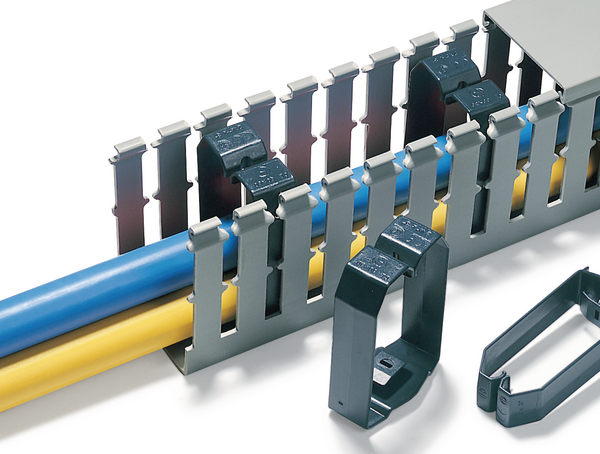

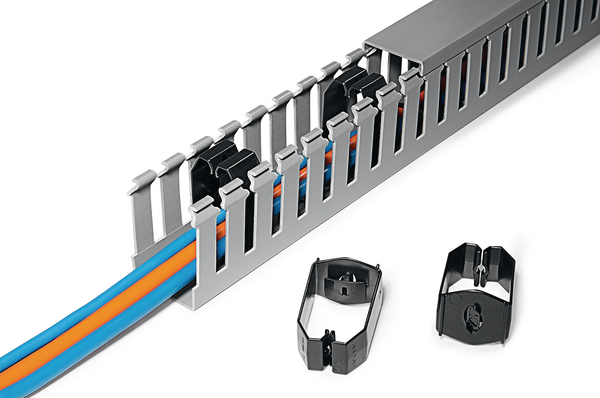

HelaDuct Base Wire Retainers HTWD-BWR are anchored securely on the raised mounting points of HTWD-PN and HTWD-PW ducts to allow insertion of wires. Wires are held in place during wiring, for instance in a vertical position or during ceiling installation.
HelaDuct HTWD-BWR Base Wire Retainers is suitable for following markets and industries
-
Electrical Installation
-
Panel Building
More products in this product group
For mounting prior to wiring >| Adjustable to duct width (Yes/No) | No |
| Colour | Black (BK) |
| Current leak stable Yes/No | Yes |
| Pack Cont. | 40pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | HTWD-BWR-40X40-PC/ABS-BK |
| Product Family | HelaDuct HTWD-BWR Base Wire Retainers |
| Product Group | For mounting prior to wiring |
| Short Description | Wire securing clamp 40x40 mm, PC/ABS, black |
| For cable duct height | 40mm |
| For cable duct width | 40mm |

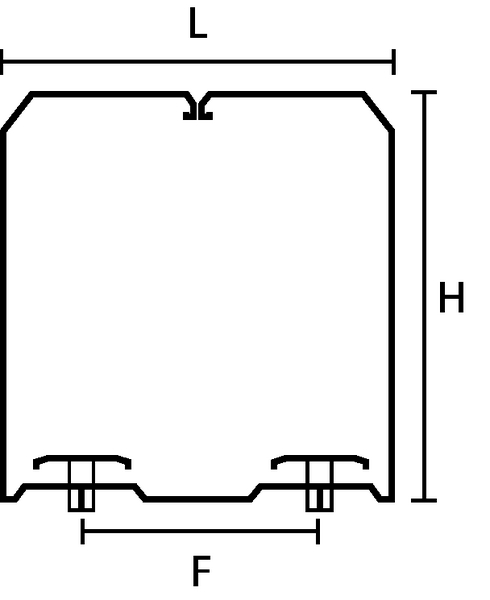

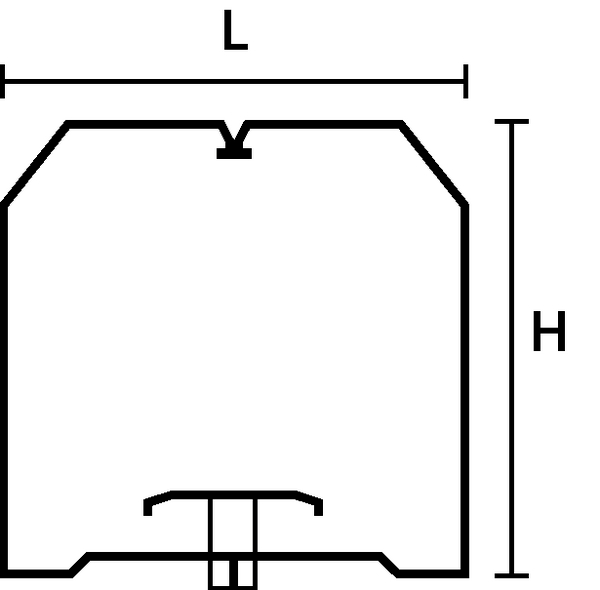

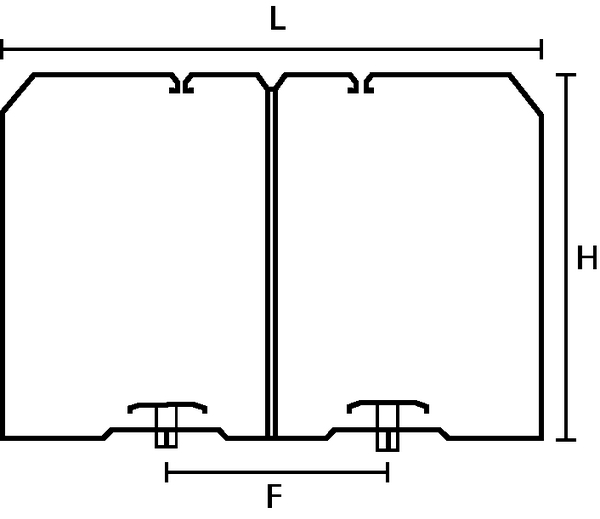

| Height (H) | 36mm |
| Length (L) | 35mm |
| Length (L2) | 35mm |

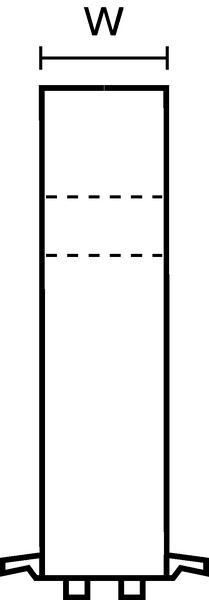

| Width (W) | 20mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS) |
| Operating Temperature - °C | -5 °C to +80 °C |
| Specifications |
|
| EAN / GTIN | 4031026567297 |
| Packaging 1 - Height (m) | 0.174m |
| Packaging 1 - Length (m) | 0.198m |
| Packaging 1 - Qty | 40 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0091m³ |
| Packaging 1 - Weight (kg) | 0.32kg |
| Packaging 1 - Width (m) | 0.264m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 4320 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 55.56kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.32kg |
| ETIM 6.0 | EC001018 |
| ETIM 7.0 Key | EC001018 |
