Wiring duct, 75x50mm, L=2m, grey, 24m
Art.-No. 186-10218
| HTWD-PC-75X50-PVC-GY
|
Copied
This product is not available anymore.

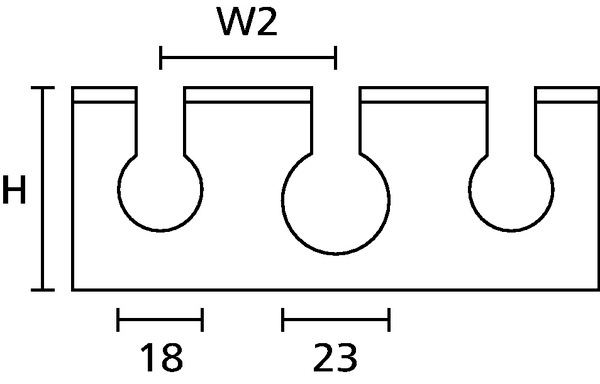

- Circular knockouts of 18 mm and 23 mm diameter
- Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
- Cover is flush with side of duct

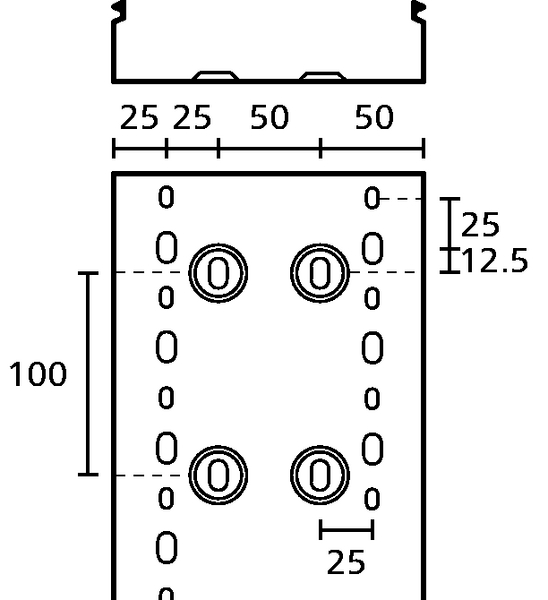

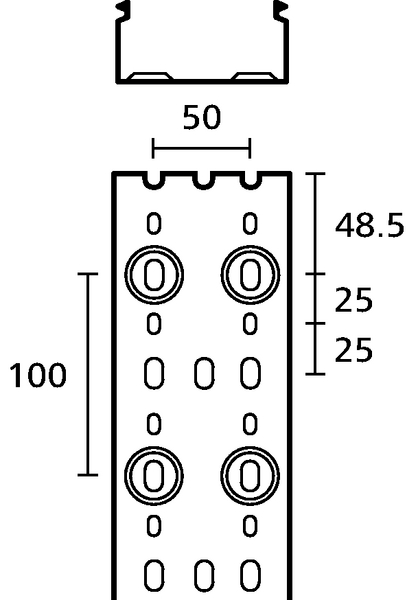

- Base perforation according to DIN EN 50085
Request quote
More products in this product group:

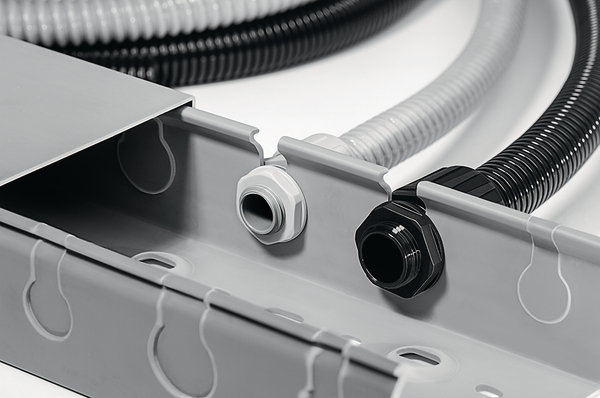

| Application | HelaDuct HTWD-PC wiring ducts are typically used in applications requiring branching connections with corroguated or rigid conduits, such as lifts. |
| Colour | Grey (GY) |
| Current leak stable Yes/No | Yes |
| Fixation Method | Screw Mounting |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTWD-PC-75X50-PVC-GY |
| Package Content | 24m |
| Package Content packed in | meter |
| Product Family | HelaDuct HTWD-PC (DIN-sizes) with circular knockouts for conduits and heavy cables |
| Product Group | Rigid PVC Wiring Ducts |
| Short Description | Wiring duct 75x50 mm, PVC, 24 m, grey |
| Type | HTWD-PC-75X50 |
| Type of side wall | Hole-/slot punching |
| Weight/Unit | 0.63kg |
| Country of Origin | IT |
| Customs Number | 39259020 |
| GTIN-13 / EAN | 4031026567679 |
| Packaging 3 - Height (m) | 0.182m |
| Packaging 3 - Length (m) | 2.03m |
| Packaging 3 - Qty | 24 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0732m³ |
| Packaging 3 - Weight (kg) | 15.62kg |
| Packaging 3 - Width (m) | 0.198m |
| Packaging 4 - Height (m) | 1.054m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 480 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.012m³ |
| Packaging 4 - Weight (kg) | 334.4kg |
| Packaging 4 - Width (m) | 0.8m |
