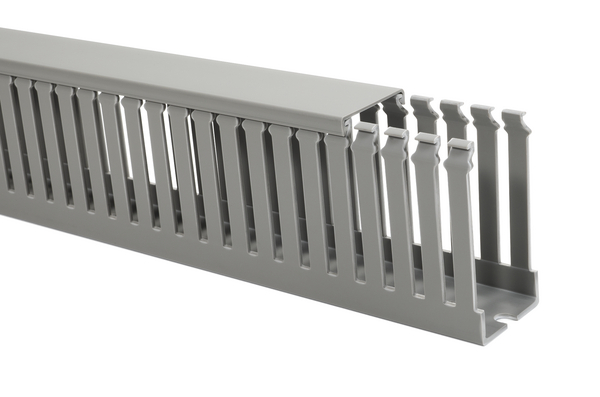

Rigid PVC wiring ducts : HTWD-PD-25X25

Wiring duct 25x25 mm, 2 m, PVC, grey, Article number: 185-42525


  • Narrow slots suitable for small-diameter wires
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of ducts

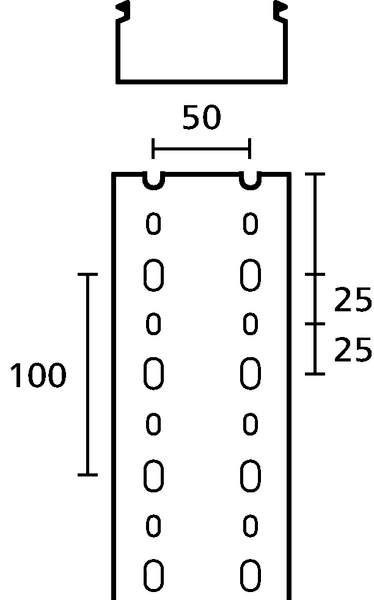

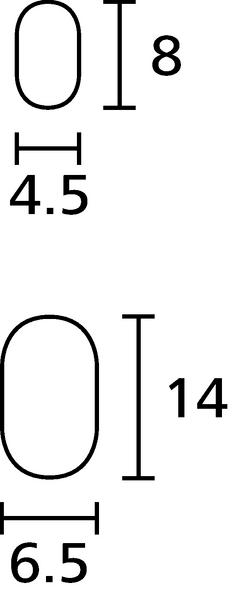

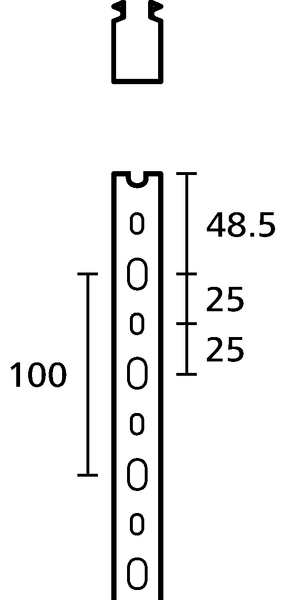

  • Base perforation according to DIN EN 50085

Certifications & Approvals

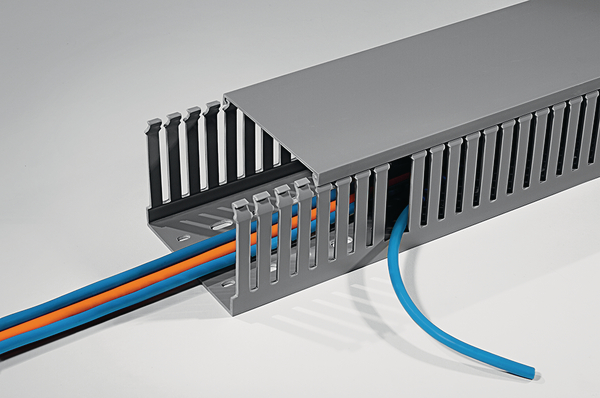

HelaDuct HTWD-PD wiring ducts are used to route and protect wires in control panels and switching systems.

HelaDuct HTWD-PD (DIN-sizes) is suitable for following markets and industries

Colour Grey (GY)
Pack Cont. 48m
Package Quantity per Box
Product Family HelaDuct HTWD-PD (DIN-sizes)
Product Group Rigid PVC wiring ducts
Short Description Wiring duct 25x25 mm, 2 m, PVC, grey

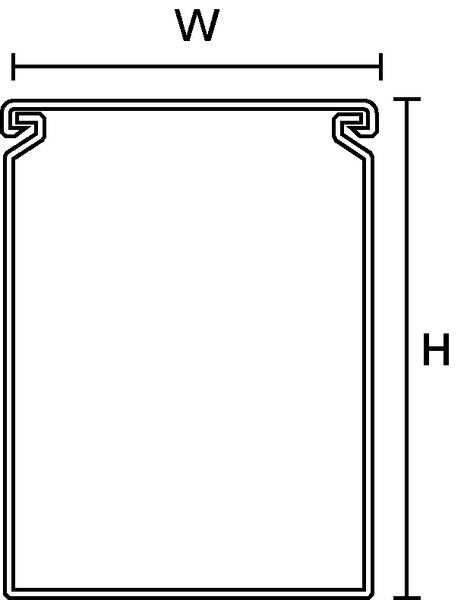

Height (H) 25mm
Length (L) 2m
Width (W) 25mm

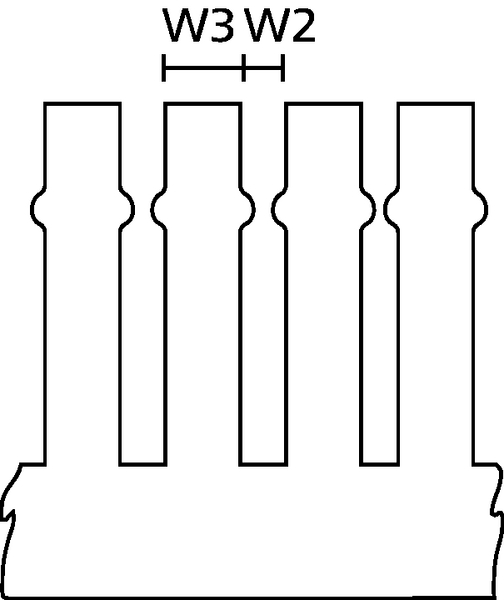

Width (W2) 5mm
Width (W3) 7.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride (PVC)
Operating Temperature - °C -5 °C to +60 °C
Self extinguishing (Yes/No) Yes
Specifications ANSI/UL 1565, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5
UL OCD link Link
UL-File Number E357929
EAN / GTIN 4031026565101
Packaging 3 - Height (m) 0.073m
Packaging 3 - Length (m) 2.01m
Packaging 3 - Qty 48
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.026
Packaging 3 - Weight (kg) 10.1kg
Packaging 3 - Width (m) 0.177m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3264
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 707.8kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000012
ETIM 7.0 Key EC000012
