Fixing elements for aluminium frames : ACFM7W10PT5.3

The ACFM7W10PT5.3 is specially designed for the ITEM profile with a T-slot width of 10 mm and external dimensions of 50 mmArticle number: 151-03193

Features

  • Easy to assemble (quarter turn)
  • Tight fit after assembly
  • For cable ties up to a width of 8 mm
  • Fixing with 24er plug nut possible
  • Cable fastening longitudinally and transversely to the profile possible
  • Centering of the bundled cables due to the deepened shape of the surface

Certifications & Approvals

Application

The ACFM7W10PT5.3 is specially designed for the ITEM profile with a T-slot width of 10 mm and external dimensions of 50 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.

Cable Ties T50 T80 T120 X80 X120 Q50 Q120
Colour Black (BK)
For Ties T50 T80 T120 X80 X120 Q50 Q120
Pack Cont. 500pcs.
Package Quantity per Bag
PART DESCRIPTION ACFM7W10PT5.3-PA66/6HIRHS-BK
Product Family For ITEM10 frame
Product Group Fixing elements for aluminium frames
Short Description The ACFM7W10PT5.3 is specially designed for the ITEM profile with a T-slot width of 10 mm and external dimensions of 50 mm
for Panel Thickness min - max 5.3 - 5.3 mm

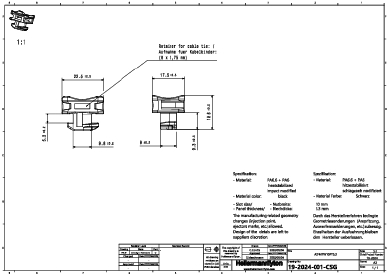

Height (H) 9.3mm
Height (H2) 18.6mm
Length (L) 17.5mm
Panel Thickness max. 5.3mm
Strap Width max. (G) 8.0mm
Width (W) 22.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
Specifications
GTIN-13 / EAN 4031026643700
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.381815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 8.89089kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 234.408kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
