Automatic bundling : ATSBCEC36

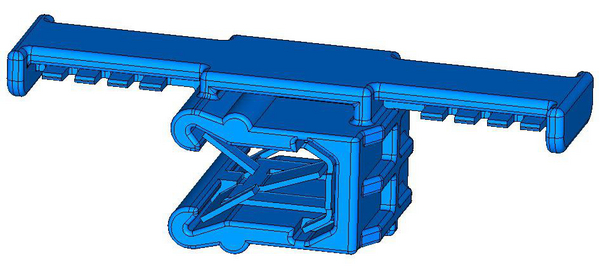

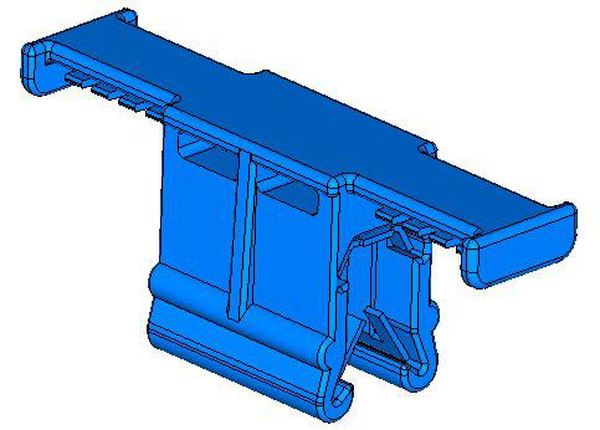

Bundling clip 39x9 mm, high impact modified, heat stabilised, black, Article number: 102-68365
Features
- Easy assembly, just shuffle manually
- Designed for edges of 1 - 3 and 1.5 - 4 mm
- Integrated metal clamp holds clip firmly in place
- Clamp consists of double tempered steel spring
- ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
Certifications & Approvals
Application
Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. These parts are used in the automotive industry for assembly of cable harnesses.
Bundling clips for automatic cable tying systems is suitable for following markets and industries
More products in this product group
Automatic bundling >| Application 2 | Stationary, mobile or included in a fully automated production line. |
| Bench mount kit | Bench mounting kit CPK with foot pedal operation |
| Colour | Black (BK) |
| Features and Benefits | |
| Harness board accessory HH20 | Bundle Ø max. 20 mm, standoffs are used as spacer for an optimal bundling, bundle height 45-25 mm |
| Overhead Suspender | Overhead suspension CPK unit with spring balancer |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | ATSBCEC36-PA66HIRHS-BK |
| Power Supply unit | Power pack CPK Input: 230/115 VAC Output: 25,2 VDC 50 W |
| Product Family | Bundling clips for automatic cable tying systems |
| Product Group | Automatic bundling |
| Short Description | Clips to fix cables or harnesses. |
| Short Description | Bundling clip 39x9 mm, high impact modified, heat stabilised, black |
| Tool suitable cable tie material | Plastic |
| Type | ATS BCEC36 |
| Bundle ∅ max. | 20.0mm |
| Bundling Bar Length | 39.0mm |
| Height (H) | 16.0mm |
| Length (L) | 39.0mm |
| Min.Tensile Strength | 80N |
| Width (W) | 9.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026333687 |
| Minimum Order Quantity | 1 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 1.057362kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.22362kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 245.5kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.0435kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
