Accessory, Autotool, 1pc. (Bench Mount Kit Fixed)
Art.-No. 102-00043 | Bench Mount Kit Fixed |

Copied
Overhead suspension 3080 (also shown: Autotool System 3080 and consumables).

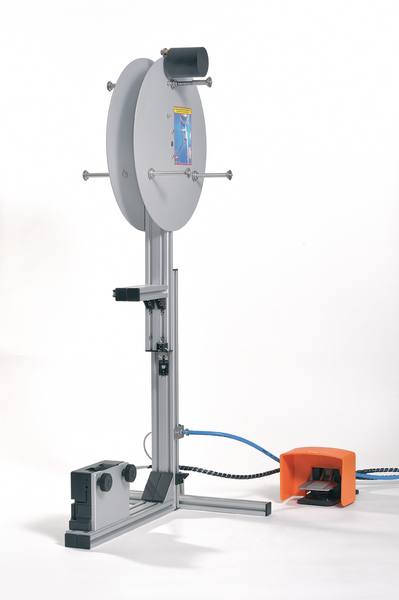

Optional: Bench mount kit 3080 with table board.
Packaging application with Bench mount kit horizontal 3080.
Automized clip application.
Automized clip application

    This product is not available anymore.

    Alternative product available

    • Bench mount kit automatic ATS in fully automated production lines
    • Bench mount kit horizontal ATS for horizontal use in fully automated production lines
    • Bench mount kit ATS for stationary use, foot pedal included
    • Overhead suspension ATS for flexible use
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Method Stationary or flexible
    Bench mount kit Tool and tie reel retainer including foot pedal
    Description Bench Mount Kit Fixed
    Harness board accessory HH20 Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
    Local order number Bench Mount Kit fixed
    Operation electrical
    PART DESCRIPTION Bench Mount Kit Fixed
    Package Content 1pc.
    Power Supply unit Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
    Product Family Bench mount kit fixed
    Product Group Waste-free bundling up to ⌀ 100 mm
    Short Description Bench mount kit for Autotool System ATS for efficient automatisation
    Tool suitable cable tie material Plastic
    Type Bench Mount Kit Fixed
    Weight/Unit 10.0kg
    Bundle ⌀ 0.0-80.0mm
    Bundle ⌀ max. 80.0mm
    Bundle ⌀ min. 0.0mm
    Cable Tie Head Height (metric) 5.4mm
    Cable Tie Head Width (metric) 9.0mm
    Strap Width max. 4.5mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 84798997
    GTIN-13 / EAN 4031026431574
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.

    Cable tie guns >
