6A Splice Protector Holder Heatshrink
Art.-No. 857-40299 | BRIDGE-6A

Copied
  • Manages 18 x 6A Splice Protectors (double stacked)
  • Maximum splice protector length 60mm
  • Compatible with HellermannTyton Single Element and Hellamass Large Splice Trays

Request your individual offer now

Colour Blue (BU)
Material Polyamide 6.6 (PA66)
PART DESCRIPTION BRIDGE-6A
Package Content packed in Bag
Product Family Fibre Splice Tray Accessories
Product Group 6A Splice Protector Holder Heatshrink
Short Description 6A Splice Protector Holder Heatshrink
Splice Capacity 9
Technical Description The HellermannTyton 6A splice protector holder (splice bridge) is suitable for use in the HellermannTyton single element and Hellamass Large splice trays. The splice prtotector holder manages a maximum of 18 x 6A splice protectors (double stacked). All HellermannTyton single element splice trays accept 2 x splice protector holders excluding the Hellamass Large which holds a maximum of 24.
Type BRIDGE-6A

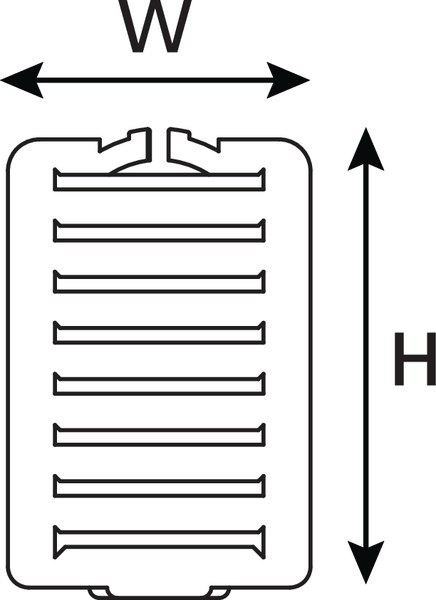

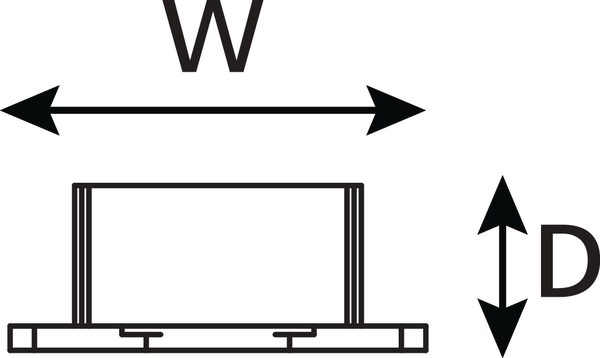

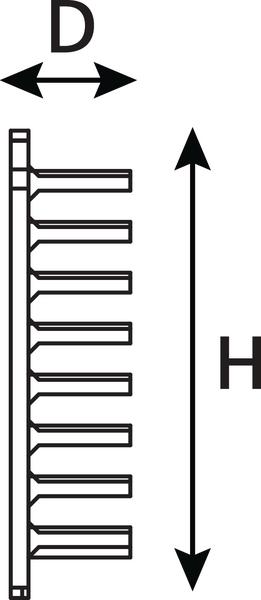

Depth (D) 5.75mm
Height (H) 22.5mm
Recov. ⌀ d 1.6mm
Width (W) 14.5mm
ROHS compliant Yes
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660114809
ETIM 7.0 Key EC000759
ETIM 8.0 Key EC000759
ETIM 9.0 Key EC000759
