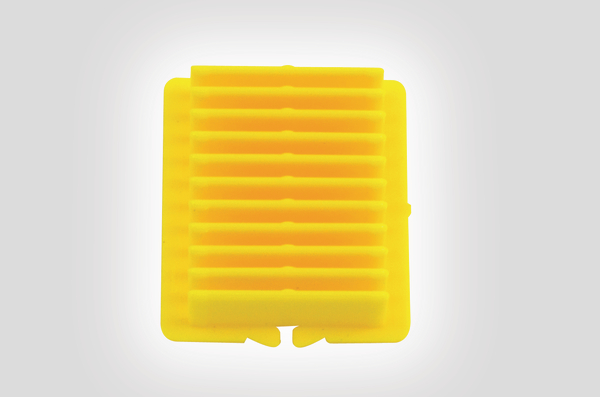

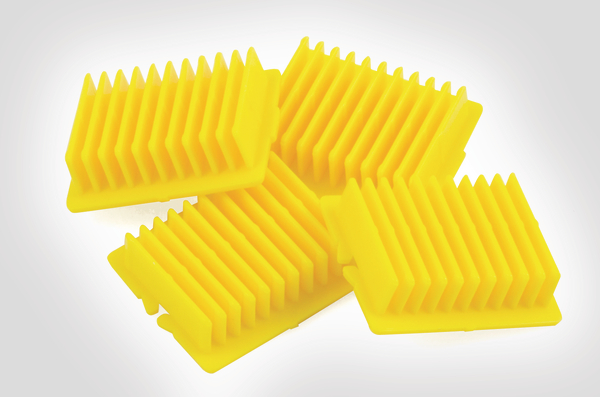

ANT Splice Protector Holder Crimp : BRIDGE-CRIMP

Fibre Splice Tray Accessories, Article number: 857-40300


  • Used to secure different types of splice protector within the splice tray
  • 6 options available for the most common applications
  • Optical splitter/3A or ANT option
Colour Yellow (YE)
Description Splice Protector Holder Crimp (ANT)
Package Quantity per Bag
Product Family Fibre Splice Tray Accessories
Product Group ANT Splice Protector Holder Crimp
Technical Description The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts.

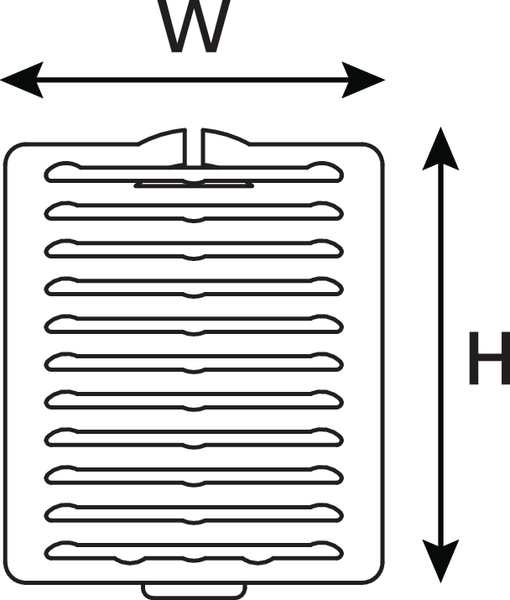

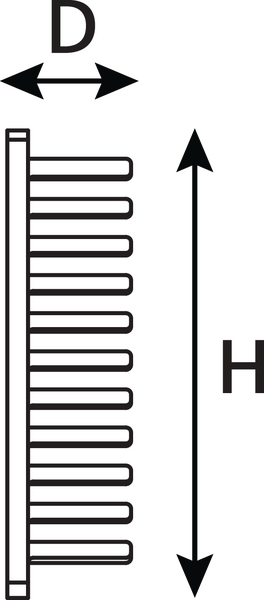

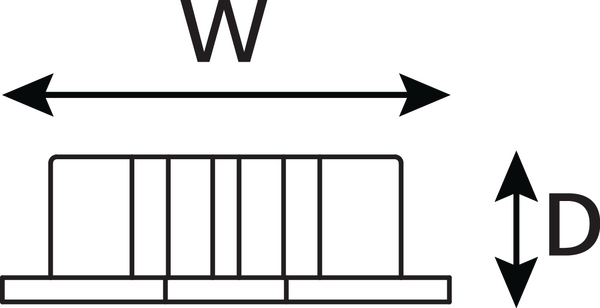

Height (H) 0.85mm
Length (L) 21.5mm
Width (W) 14.5mm
Material Polyamide 6.6 (PA66)
EAN / GTIN 5022660114816
ETIM 6.0 EC002609
ETIM 7.0 Key EC002609
