3A Splice Protector Holders : BRIDGE-SP/3A

Fibre Splice Tray Accessories, Article number: 857-40426

Features

  • Used to secure different types of splice protector within the splice tray
  • 6 options available for the most common applications
  • Optical splitter/3A or ANT option
Colour Green (GN)
Description Splice Protector Holders
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION BRIDGE-SP/3A
Product Family Fibre Splice Tray Accessories
Product Group 3A Splice Protector Holders

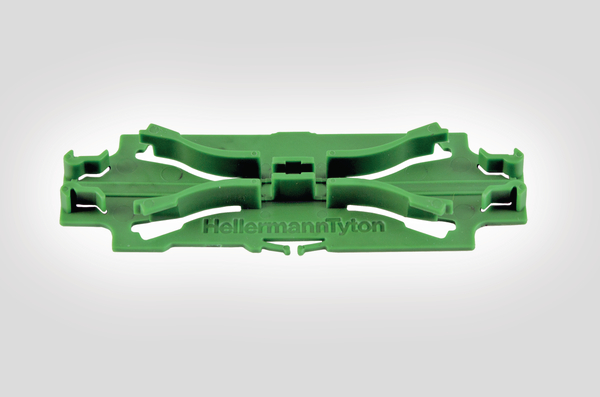

Technical Description The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. The optical splitter splice bridges will accept 2 x 60 x 7 x 4mm optical splitters plus 2 3A or ANT splices. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts.

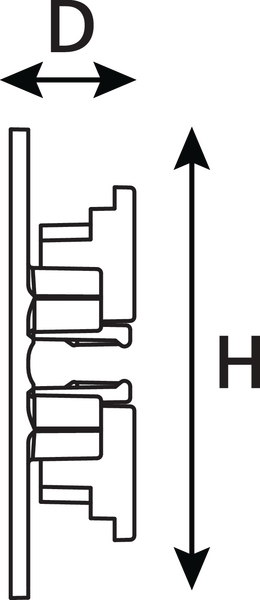

Depth (D) 6mm
Height (H) 5.1mm
Length (L) 65mm
Recov. ∅ d 2.4mm

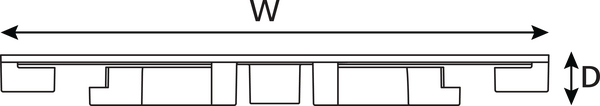

Width (W) 21.5mm
ELV compliant Dir. Art. 4 (2) YES
Material Polyamide 6.6 (PA66)
EAN / GTIN 5022660149023
ETIM 6.0 EC002609
ETIM 7.0 Key EC002609
UNSPSC Key 43223338
