MDU S3 Drop Seal 24 x 5mm + Lockplate
Art.-No. 857-50236
| MDSLP-S3-24X5MM
|
Copied
- Single Seal to manage up to 24 x 5mm drops
- Quick and simple to fit
- Addiitonal lockplate provided for enclosures with locks
Request your individual offer now
Request quote
More products in this product group:
| Cable ⌀ max | 5.0mm |
| Colour | Grey RAL 7035 (RAL7035), Black (BK) |
| Content |
Drop Gland Seal Plates Mulit Drop Seal Lock Fixing Plate |
| Description | MDU S3 Drop Seal 24 x 5mm + Lockplate |
| Material | Thermoplastic Elastomer (TPE), Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | MDSLP-S3-24X5MM |
| Package Content | 1pc. |
| Package Content packed in | Bag |
| Port count | 24 |
| Product Group | MDU Drop Seal Kits |
| Short Description | MDU S3 Drop Seal 24 x 5mm + Lockplate |

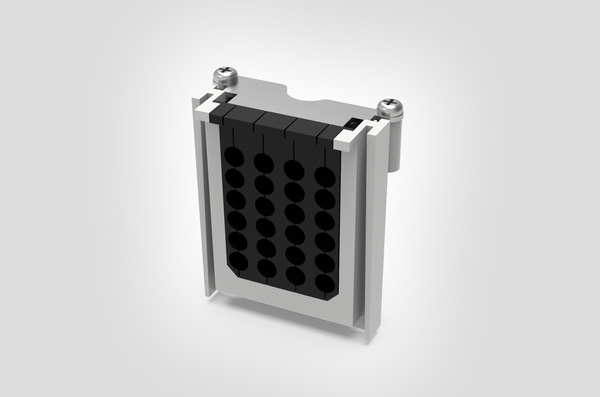

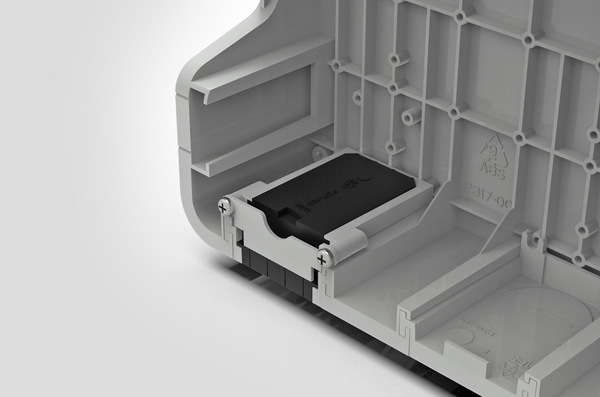

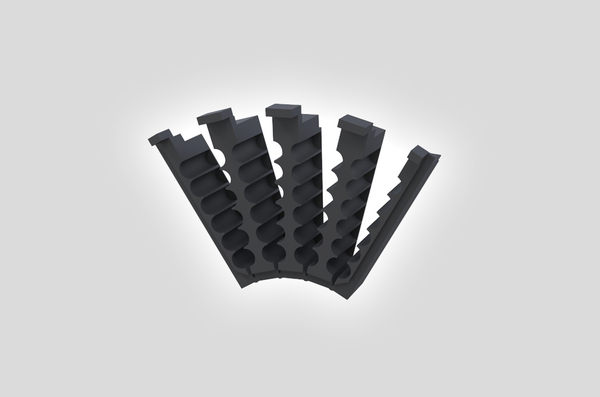

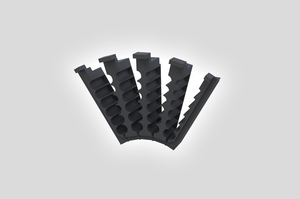

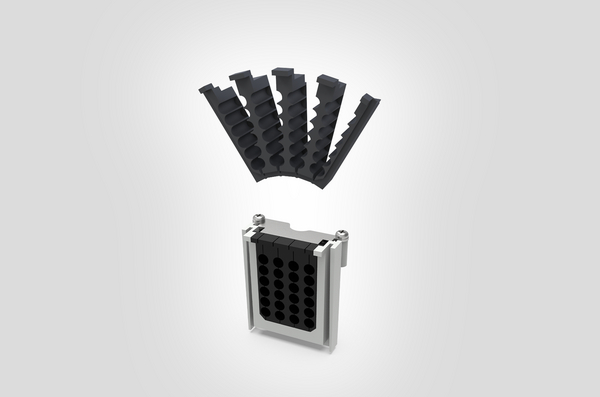

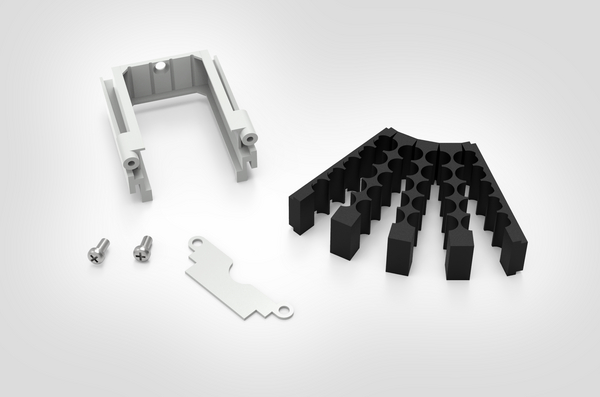

| Technical Description | The MDSLP-S3-24X5MM is a mechanical seal manufactured from ABS and TPE. The seal has been designed to manage a maximum of 24 5mm drops in the central entry position in the MDU S3 enclosure when the enclosure has been fitted with a lock. Each seal kit is supplied with the seal plates, TPE spacer and a lockplate. |
| Type | MDSLP-S3-24X5MM |
| Variant | Indoor/Outdoor FTTx Enclosures |
