Cable and Strength Member Anchor Kits
Art.-No. 857-40530
| S3-AK-001
|
Copied
- Provides strain relief to fibre optic cables maximum diameter 13mm
- Simple installation
- Suitable for use with MDU - S3
Request your individual offer now
Request quote
More products in this product group:

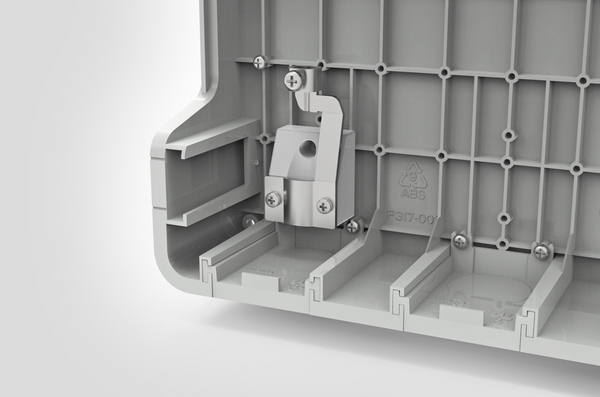

| Application | A cable anchor bracket to provide strain relief for incoming and outgoing cables from 4.5mm to 13mm within the MDU-S3. |
| Cable ⌀ max | 13.0mm |
| Cable ⌀ min | 4.5mm |

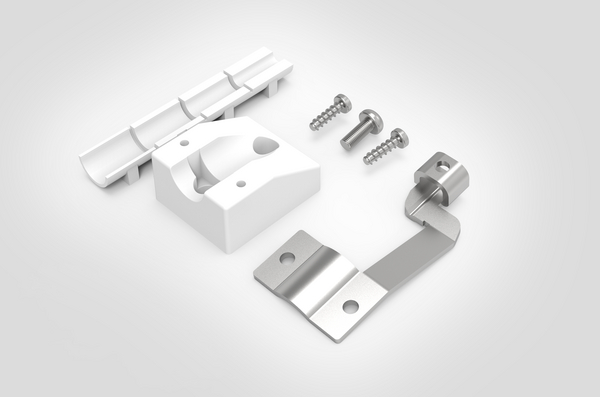

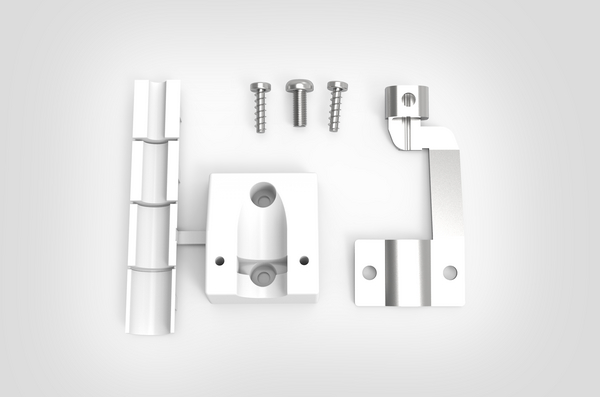

| Content |
Clamp Base (Plastic) Anchor Bracket (Metal) Fixing Screws |
| Description | Anchor Kits for MDU - S3 |
| PART DESCRIPTION | S3-AK-001 |
| Package Content | 1pc. |
| Package Content packed in | Bag |
| Port count | 1 |
| Product Family | Fibre Optic Enclosure Accessories |
| Product Group | Cable and Strength Member Anchor Kits |
| Technical Description | The anchor kit is used to secure the cable and strength member inside the enclosure and helps to ensure that no undue stress is put upon the fibre cables which may affect the optical performance. |
| Type | S3-AK-001 |
| Variant | Indoor/Outdoor FTTx Enclosures |
