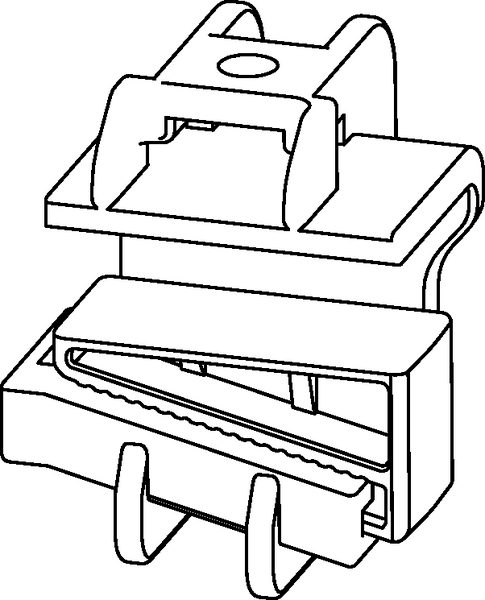

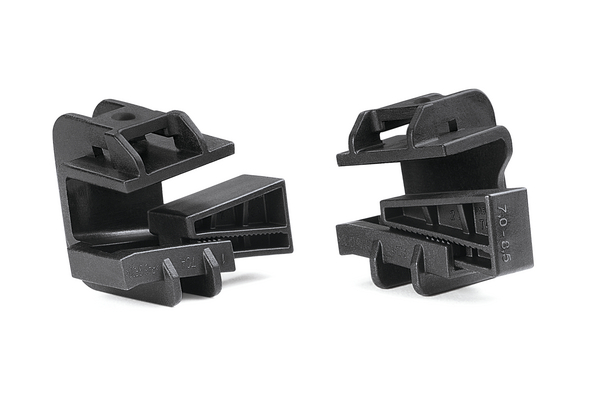

Heavy duty harness clips : Beam Clamp B
Beam clamp for heavy duty applicationsArticle number: 151-00822
Features
- Easy to install
- No damage to surfaces
- Easy maintenance of bundle by simply changing cable tie
- Cable tie head can be moved after bundling
- Applicable to a wide range of panel thicknesses
Certifications & Approvals
Application
Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting.
These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
More products in this product group
Heavy duty harness clips >| Colour | Black (BK) |
| Pack Cont. | 200pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | Beam Clamp B-PA6GF30-BK |
| Product Family | Beam clamps / Wedge clips |
| Product Group | Heavy duty harness clips |
| Short Description | Beam clamp for heavy duty applications |
| Type | Beam Clamp B_PA6GF30_G1 |
| for Panel Thickness min - max | 7 - 8.5 mm |
| Height (H) | 36.7mm |
| Height (H2) | 12.5mm |
| Length (L) | 46.2mm |
| Length (L2) | 27.0mm |
| Width (W) | 28.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polyamide 6, glass-fibre reinforced (PA6GF30%) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026409344 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 2.443597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 15.481582kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14400 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 206.808kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 2.4kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121702 |
