Cable tie mount for edge, Wmax=7.9mm, black, 200pcs.
Art.-No. 151-01187

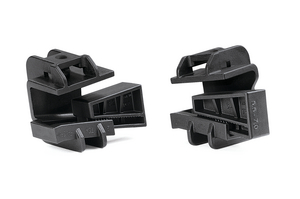

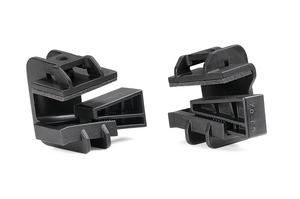

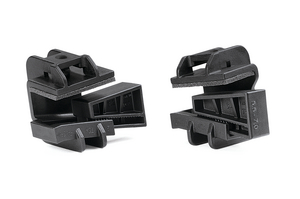

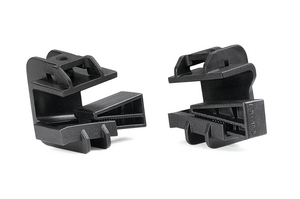

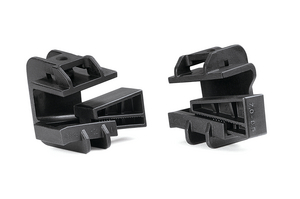

| Beam Clamp C with foam-PA6GF30-BK
|
Copied
- Easy to install
- No damage to surfaces
- Easy maintenance of bundle by simply changing cable tie
- Cable tie head can be moved after bundling
- Applicable to a wide range of panel thicknesses
Show more
Show less
Request quote
More products in this product group:
| Application |
Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting. These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings. |
| Colour | Black (BK) |
| Key product features | vibration absorbing, for multiple routing |
| Local order number | Beam Clamp C with foam_PA6GF30_T1 |
| Material | Polyamide 6, glass-fibre reinforced (PA6GF30) |
| PART DESCRIPTION | Beam Clamp C with foam-PA6GF30-BK |
| Package Content | 200pcs. |
| Package Content packed in | Bag |
| Product Family | Beam clamps / Wedge clips |
| Product Group | Heavy duty harness clips |
| Short Description | Beam clamp for heavy duty applications |
| Type | Beam Clamp C with foam |
| Weight/Unit | 0.011555kg |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026468198 |
| Packaging 1 - Height (m) | 0.085m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0153m³ |
| Packaging 1 - Weight (kg) | 2.340135kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 15.15481kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14400 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 202.848kg |
| Packaging 4 - Width (m) | 0.8m |
