Cable tie mount for edge, black, 200pcs.
Art.-No. 151-00886 | Beam Clamp D-PA6GF30-BK |

Copied

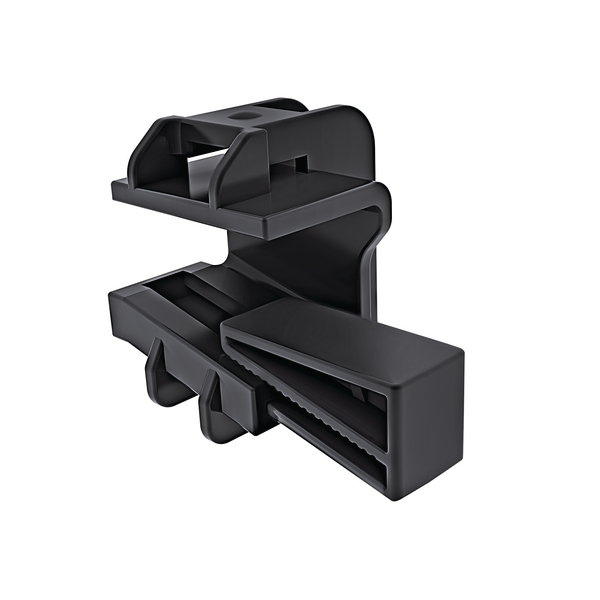

Beam Clamp for Edges 5.5 - 7.0 mm.

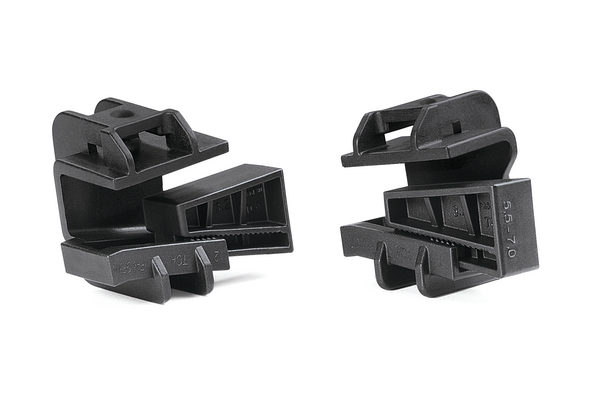

Two-piece ratcheting wedge design allows for easy, positive-locking size adjustment.

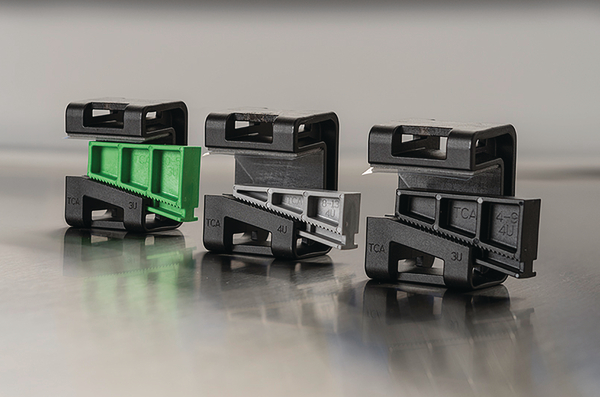

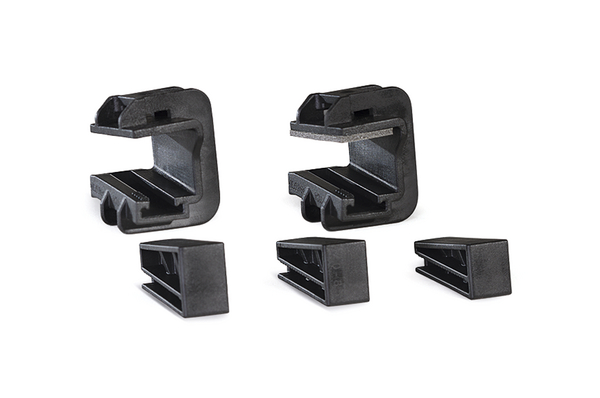

Our two Beam Clamps with three different wedges for diverse sheet thicknesses.

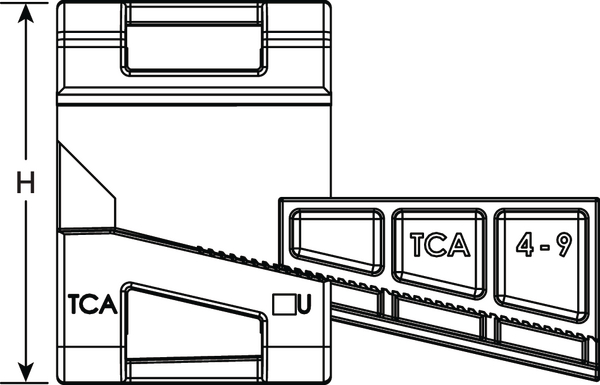

Beam Clamp, Front view

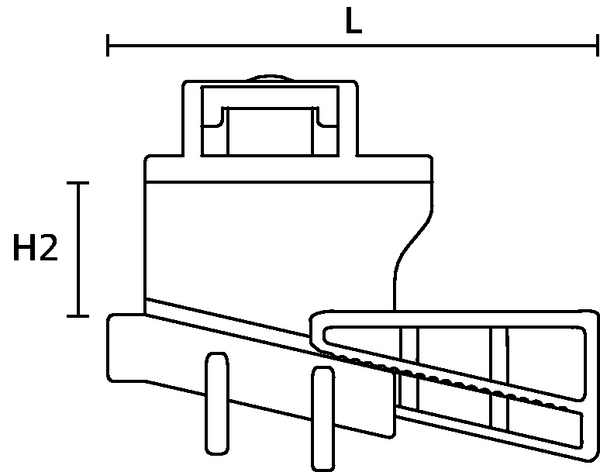

Beam Clamp, Side view

    • Easy to install
    • No damage to surfaces
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    • Applicable to a wide range of panel thicknesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting.
    These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
    Colour Black (BK)
    Key product features vibration absorbing, for multiple routing
    Local order number Beam Clamp D_PA6GF30_G1
    Material Polyamide 6, glass-fibre reinforced (PA6GF30)
    PART DESCRIPTION Beam Clamp D-PA6GF30-BK
    Package Content 200pcs.
    Package Content packed in Bag
    Product Family Beam clamps / Wedge clips
    Product Group Heavy duty harness clips
    Short Description Beam clamp for heavy duty applications
    Type Beam Clamp D
    UV-Stabilised Yes
    Weight/Unit 0.011652kg
    Height (H) 36.7mm
    Height (H2) 12.5mm
    Length (L) 46.2mm
    Length (L2) 27.0mm
    Width (W) 28.6mm
    for Panel Thickness min - max 5.5 - 7 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +140 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026430157
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 200
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.017775m³
    Packaging 1 - Weight (kg) 2.359535kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1200
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 14.97721kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 14400
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 200.717kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
