16/07/2025

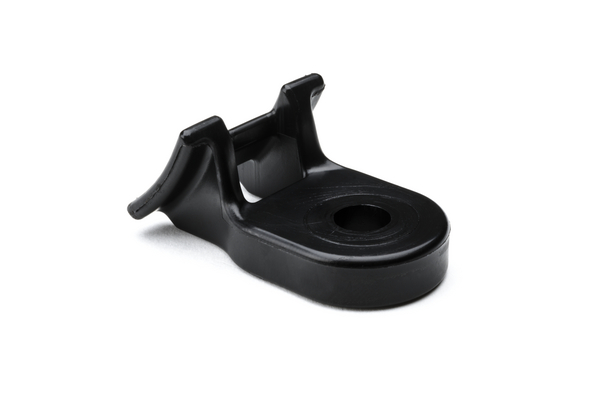

Cable tie mount for screw fixation, Wmax=12.7mm, ⌀8.0 mm, black, 100pcs.
Art.-No. 151-00441 | HDM321-PA66HIR-BK |

Copied
Eliminates the need for multiple sizes of fixed diameter clamps.
Heavy Duty Mounts HDM-Series, patent number US5820083.
Mount and tie combination makes it easy to service bundles in the field.
HDM375BDM4W is suitable for up to 2 cable ties.
HDM19, 25, 312
Medium Torque Mounts

    This product is not available anymore.
    • Design offers secure alignment to the bundle
    • Possible replacement of cushion clamps and/or metal clamps
    • Eliminates the needs for multiple sized fix diameter clamps
    • For heavy duty cable ties up to 13.5 mm width
    • Easy maintenance of bundle by simply changing the cable tie
    Add to watchlist

    Request your individual offer now

     Request quote
    Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing
    Local order number HDM321HIHSUVC2
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION HDM321-PA66HIR-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family Medium Torque Mounts
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts
    Type HDM321
    Length (L) 46mm
    Strap Width max. (G) 12.7mm
    Strap Width max. (G) (imperial) 0.5"
    Width (W) 24.0mm
    for Hole ⌀ (FH) 8.0 mm
    Flammability UL 94 HB
    Max. Torque (kgf-cm) 553kgf-cm
    Max. Torque (lbf-In) 40lbf-ft
    Operating Temperature -40 °C to +80 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026313207
    Packaging 1 - Weight (kg) 5.9kg
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
