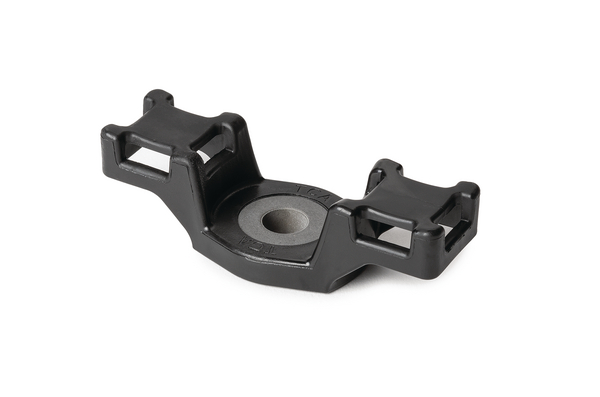

Harness Clip for Heavy Duty Applications, for Screws or Bolts HDM375BDM4W

High Torque Double Mounts (metal bushing), Article number: 151-00756

This product is not available anymore.

Features

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 12.7 mm width
  • High tightening torque through metal bushing
  • Easy maintenance of bundle by simply changing the cable tie

Application

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.

High Torque Double Mounts (metal bushing) is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) High Torque Mount 89x34.5 mm, high impact modified, heat and UV-resistant
Fixation Method Screw Mounting and Rivet
GLOBAL PART DESCRIPTION HDM375BDM4W-PA66HIRHSUV-BK
Pack Cont. 100
Package Quantity per Carton
Product Family High Torque Double Mounts (metal bushing)
Product Group Harness Clip for Heavy Duty Applications, for Screws or Bolts
Type 151-00756
Fixing Hole Centres (F) (imperial) 0.405"
for Hole ∅ (FH) 10.29 mm
Height (H) 25.2mm
Length (L) 89.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Width (W) 35.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Maximum Torque (kgf-cm) 1576kgf-cm
Maximum Torque (lbf-In) 114lbf-ft
Operating Temperature - °C -40 °C to +110 °C
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026333588
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 3.5527kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.158m
Packaging 3 - Length (m) 0.435m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0183
Packaging 3 - Weight (kg) 3.8527kg
Packaging 3 - Width (m) 0.266m
Packaging 4 - Height (m) 1.09m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.046
Packaging 4 - Weight (kg) 182.813kg
Packaging 4 - Width (m) 0.8m
Weight 0.0874lbs
Weight 3.5507kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
