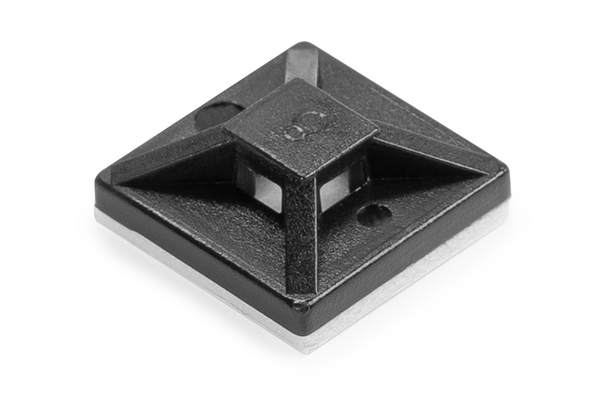

Self Adhesive, Screw Fixing Cable Tie Mounts MB2A

MB-Series square design, self adhesive, screwable, Article number: 151-00135

Features

  • Screwable or self-adhesive versions
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Maximum surface area with adhesive to achieve high pull-off force
  • 4-way entry for cable tie for quicker and more flexible installation

Certifications & Approvals

Application

Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.

MB-Series square design, self adhesive, screwable is suitable for following markets and industries

  • Solar Energy Sector Solar Energy Sector
  • Wind Energy Sector Wind Energy Sector
  • Rail Transportation Sector Rail Transportation Sector
  • Shipbuilding Shipbuilding
  • Defence Industry Defence Industry
Colour Black (BK)
Fixation Method Screw Mounting and Adhesive
GLOBAL PART DESCRIPTION MB2A-PA66-BK
Pack Cont. 100
Package Quantity per Bag
Product Family MB-Series square design, self adhesive, screwable
Product Group Self Adhesive, Screw Fixing Cable Tie Mounts
Type MB2A.NB3P

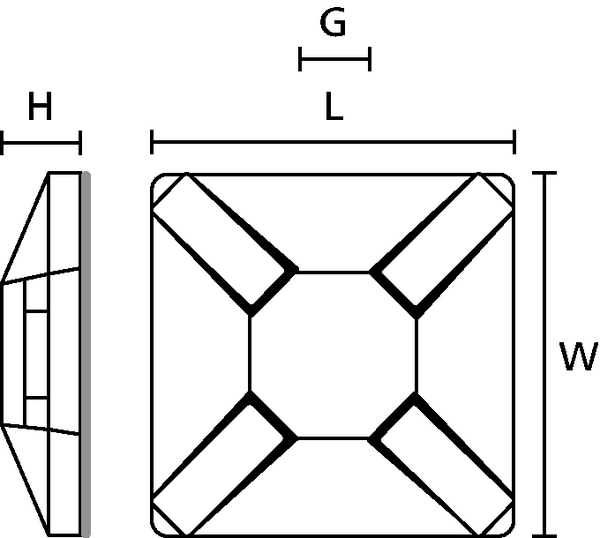

Height (H) 4.1mm
Length (L) 13.0mm
Strap Width max. (G) 2.7mm
Thickness of Adhesive (TA) nom. 0.8
Width (W) 13.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
Flammability UL 94 V2 (excluding adhesive)
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026312897
ETIM 5.0 EC000449
ETIM 6.0 EC000449
