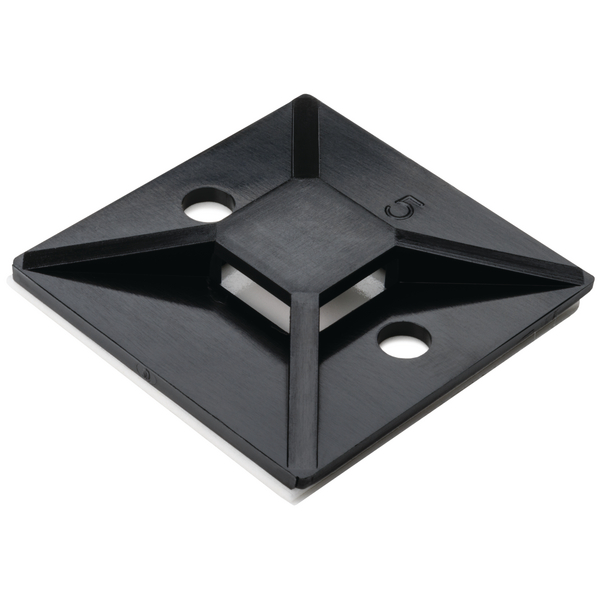

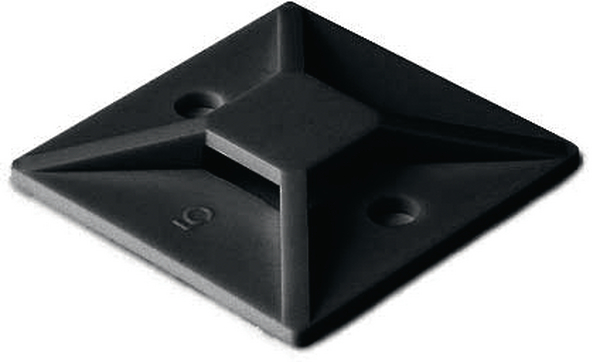

Cable tie mount, Wmax=8.9mm, ⌀4.8 mm, #8 Screw, black, 100pcs.
Art.-No. 151-28602
| MB5A-PA66-BK
|
Copied
- Simple to instal
- Excellent security, particularly in areas of high vibration
- Maximum surface area with adhesive to achieve high pull-off force
- 4-way entry for cable tie for quicker and more flexible installation
Request your individual offer now
Request quote
More products in this product group:
| Application | Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable. |
| Colour | Black (BK) |
| Fixation Method | adhesive |
| For Ties | T18 - T150 |
| Local order number | MB5A.NB3P |
| Material | Polyamide 6.6 (PA66) |
| Maximum Static Load (lb/ft) | 2.1lbf-ft |
| Mounting Screw Type | #8 Screw |
| PART DESCRIPTION | MB5A-PA66-BK |
| Package Content | 100pcs. |
| Package Content packed in | Pack |
| Product Family | MB-Series square design, self-adhesive |
| Product Group | Cable tie mounts |
| Short Description | Screw Fixing Cable Tie Mount self adhesive 38x38 mm, black |
| Type | MB5A |
| UV-Stabilised | No |
| Weight/Unit | 0.00361kg |
| Fixing Hole Centres (F) | 25.3mm |
| Fixing Hole Centres (F) (imperial) | 1.0" |
| Height (H) | 7.1mm |
| Length (L) | 37.7mm |
| Load max. | 9.341N |
| Strap Width max. (G) | 8.9mm |
| Strap Width max. (G) (imperial) | 0.35" |
| Thickness of Adhesive (TA) nom. | 0.8mm |
| Thickness of Adhesive (TA) nom. (imperial) | 0.031" |
| Width (W) | 37.7mm |
| for Hole ⌀ (FH) | 4.8 mm |
Download
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Adhesive Operating Temperature | -18 °C to +66 °C |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026312446 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.29m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00267525m³ |
| Packaging 1 - Weight (kg) | 0.361001kg |
| Packaging 1 - Width (m) | 0.205m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 7.84002kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 177.8kg |
| Packaging 4 - Width (m) | 0.8m |
