29/02/2024

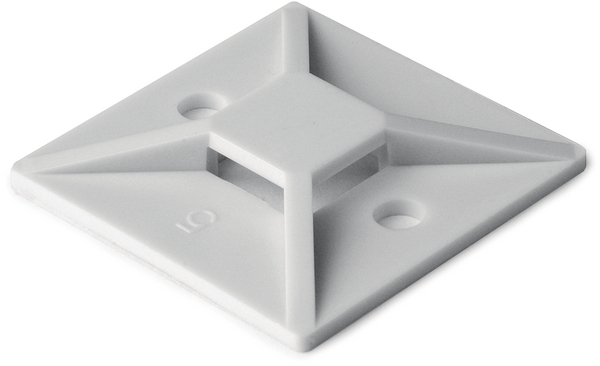

Cable tie mount for adhesive use, Ø3.1 mm, Adhesive, white, 100pcs.
Art.-No. 151-28349 | MB3A-PA66-WH Details

  • Simple to instal
  • Excellent security, particularly in areas of high vibration
  • Maximum surface area with adhesive to achieve high pull-off force
  • 4-way entry for cable tie for quicker and more flexible installation

Request your individual offer now

Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
Colour White (WH)
Description Cable Tie Mount MB3A
Fixation Method Screw Mounting and Adhesive
For Ties T18 - T30
Local order number MB3A.NW3P
Material Polyamide 6.6 (PA66)
Mounting Screw Type Adhesive
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION MB3A-PA66-WH
Product Family MB-Series square design, self-adhesive
Product Group Cable tie mounts
Short Description Screw Fixing Cable Tie Mount self adhesive 19x19 white
Fixing Hole Centres (F) 13.2mm
for Hole ∅ (FH) 3.1 mm
Height (H) 3.8mm
Length (L) 19.0mm
Strap Width max. (G) 4.1mm
Thickness of Adhesive (TA) nom. 0.8
Weight/Unit 0.00089kg
Width (W) 19.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous Goods No
Nato number 5975-01-013-5864
Operating Temperature -40 °C to +60 °C
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660311727
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.089001kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 12000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 11.18kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.239m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 216000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.189
Packaging 4 - Weight (kg) 222.24kg
Packaging 4 - Width (m) 0.8m
EFO Norway block number 110101
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
