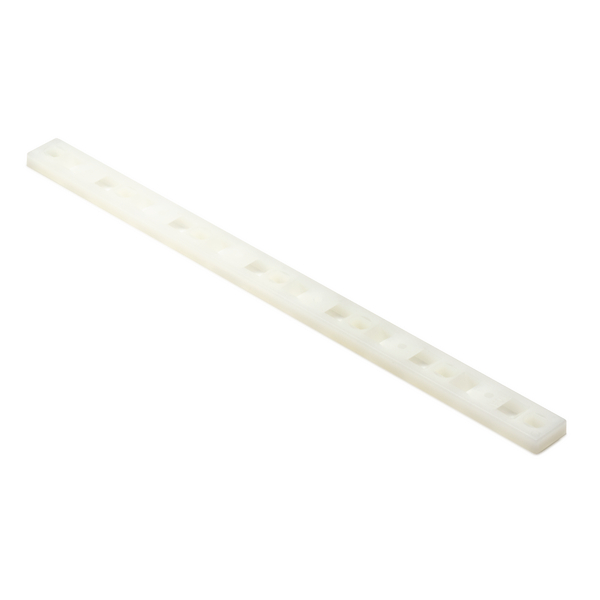

Mounting plates for screw fixing : MP2M3
Mounting plate for Screw Fixing 12.7x76.2 mm, naturalArticle number: 151-24219
Features
- Allow multiple cables to run in parallel
- Simple to fix with two screws
- Cables are fixed by using a cable tie through any combination of the available slots
Certifications & Approvals
Application
Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
More products in this product group
Mounting plates for screw fixing >| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | #6 (M3) Screw |
| No. of bundles | 2 |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | MP2M3-PA66-NA |
| Product Family | MP-Series for parallel bundling |
| Product Group | Mounting plates for screw fixing |
| Short Description | Mounting plate for Screw Fixing 12.7x76.2 mm, natural |
| Type | MP2M3.NN3P |
|
|
|
| Fixing Hole Centres (F) | 31.8mm |
| Fixing Hole Centres (F) (imperial) | 1.25" |
| for Hole ∅ (FH) | 3.7 mm |
| Height (H) | 3.2mm |
| Hole Size (HS) | 6.4mm |
| Length (L) | 76.2mm |
| Strap Width max. (G) | 5.2mm |
| Strap Width max. (G) (imperial) | 0.2" |
| Width (W) | 12.7mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660313073 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.254m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 0.5kg |
| Packaging 1 - Width (m) | 0.203m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 25.65kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 534.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.5kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
