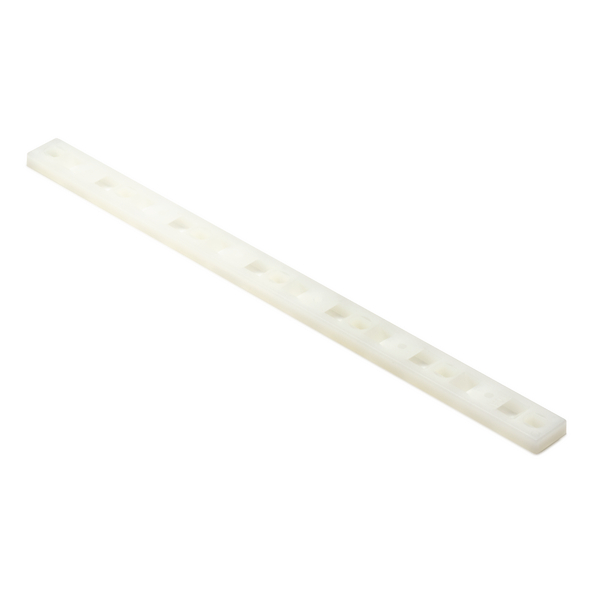

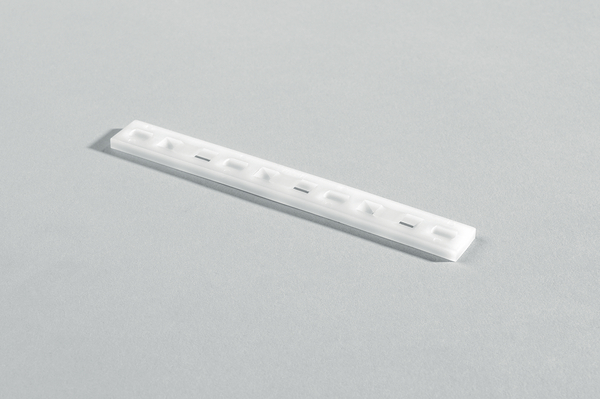

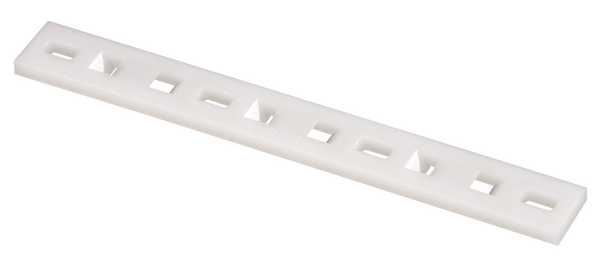

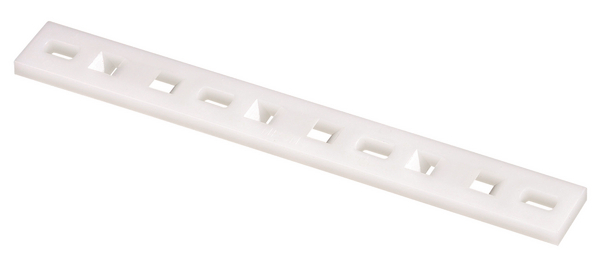

Cable tie mount for screw fixation, Ø3.7 mm, #6 (M3) Screw, natural, 100pcs.
Art.-No. 151-24319 | MP3M3-PA66-NA Details

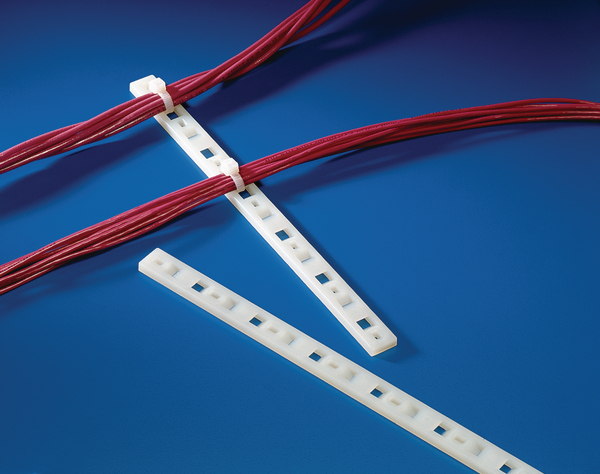

  • Allow multiple cables to run in parallel
  • Simple to fix with two screws

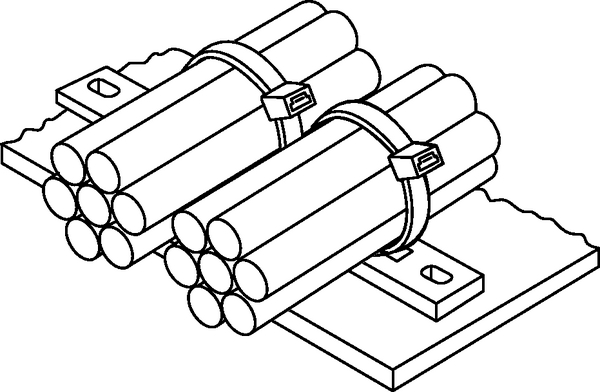

  • Cables are fixed by using a cable tie through any combination of the available slots

Request your individual offer now

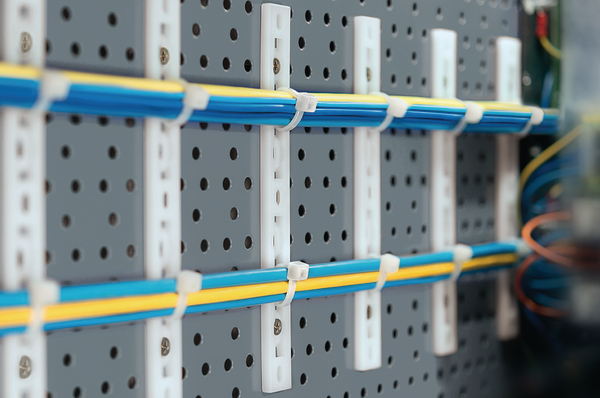

Application Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
Colour Natural (NA)
Fixation Method Screw Mount
For Ties T18 - T50
Local order number MP3M3.NN3P
Material Polyamide 6.6 (PA66)
Mounting Screw Type #6 (M3) Screw
No. of bundles 3
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION MP3M3-PA66-NA
Product Family MP-Series for parallel bundling
Product Group Mounting plates for screw fixing
Short Description Screw Fixing Mounting Plate 108x12.7 mm natural

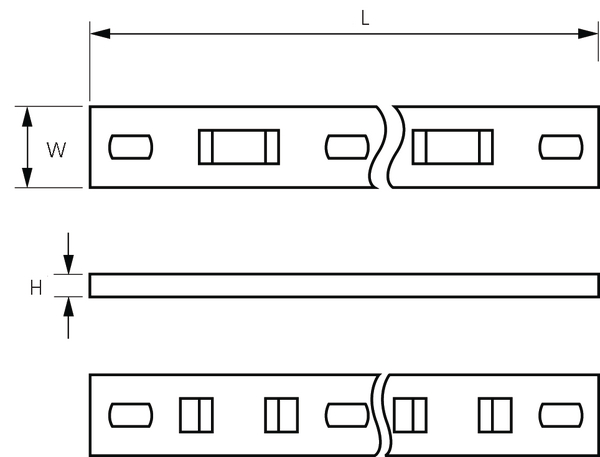

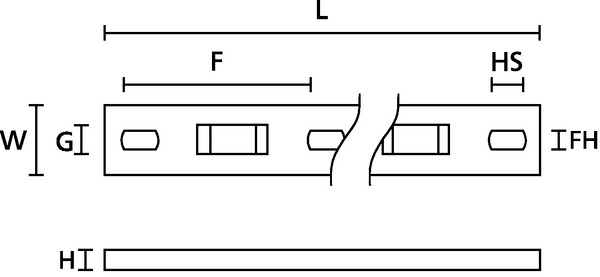

Fixing Hole Centres (F) 31.8mm
Fixing Hole Centres (F) (imperial) 1.25"
for Hole ∅ (FH) 3.7 mm
Height (H) 3.2mm
Hole Size (HS) 6.4mm
Length (L) 108.0mm
Strap Width max. (G) 5.2mm
Strap Width max. (G) (imperial) 0.2"
Weight/Unit 0.003kg
Width (W) 12.7mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications EN 45545-2
UV-Stabilised (Yes/No) No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 5022660313103
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 0.420001kg
Packaging 1 - Width (m) 0.203m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 17.45004kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 370.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
