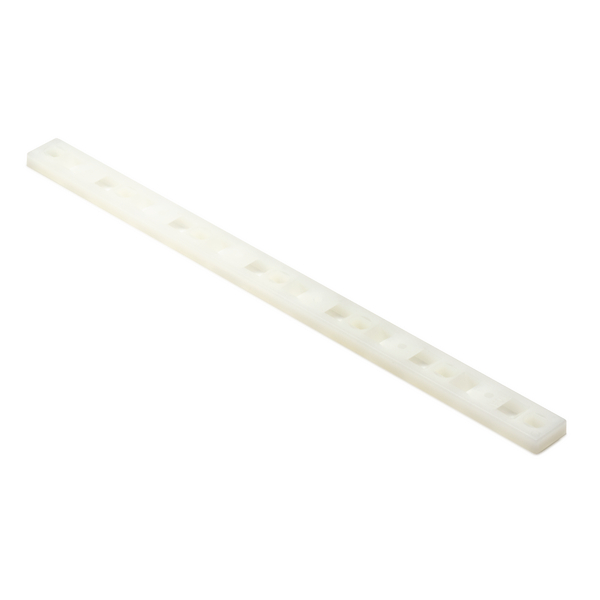

Cable tie mount for screw fixation, Ø3.7 mm, #6 (M3) Screw, natural, 100pcs.
Art.-No. 151-24519 | MP5M3-PA66-NA Details

  • Allow multiple cables to run in parallel
  • Simple to fix with two screws
  • Cables are fixed by using a cable tie through any combination of the available slots

Request your individual offer now

Application Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
Colour Natural (NA)
Fixation Method Screw Mount
For Ties T18 - T50
Local order number MP5M3.NN3P
Material Polyamide 6.6 (PA66)
Mounting Screw Type #6 (M3) Screw
No. of bundles 5
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION MP5M3-PA66-NA
Product Family MP-Series for parallel bundling
Product Group Mounting plates for screw fixing
Short Description Mounting Plates for M3 Screw Fixing
Fixing Hole Centres (F) 31.8mm
Fixing Hole Centres (F) (imperial) 1.25"
for Hole ∅ (FH) 3.7 mm
Height (H) 3.2mm
Hole Size (HS) 6.4mm
Length (L) 171.6mm
Strap Width max. (G) 5.2mm
Strap Width max. (G) (imperial) 0.2"
Weight/Unit 0.0043kg
Width (W) 12.7mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 5022660313141
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00257
Packaging 1 - Weight (kg) 0.430001kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 13.70203kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 295.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
