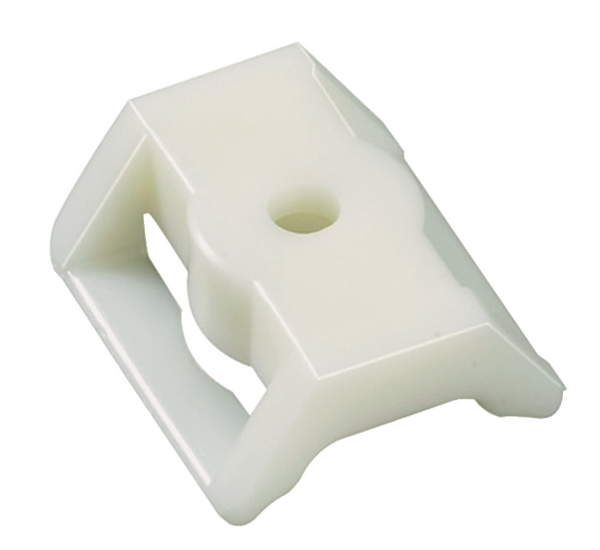

Cable tie mount for screw fixation, Wmax=12.0mm, ⌀3.0 mm, natural, 1000pcs.
Art.-No. 151-25319
| NY3343-PA66-NA
|
Copied
This product is not available anymore.
- Curved design for additional cable support
- Simple to install with a screw or bolt
- Excellent security, particularly in areas of high vibration
Request quote
More products in this product group:
| Application | Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13 mm width. |
| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Rivet |
| Local order number | NY3343.NN7P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | NY3343-PA66-NA |
| Package Content | 1000pcs. |
| Package Content packed in | pcs. |
| Product Family | NY with curved design |
| Product Group | Screw Fixing Mounts |
| Type | NY3343 |
| Country of Origin | DE |
| GTIN-13 / EAN | 4031026122434 |
| Packaging 1 - Height (m) | 0.300m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.0010kg |
| Packaging 1 - Width (m) | 0.440m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.20m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 296.0kg |
| Packaging 4 - Width (m) | 0.80m |
