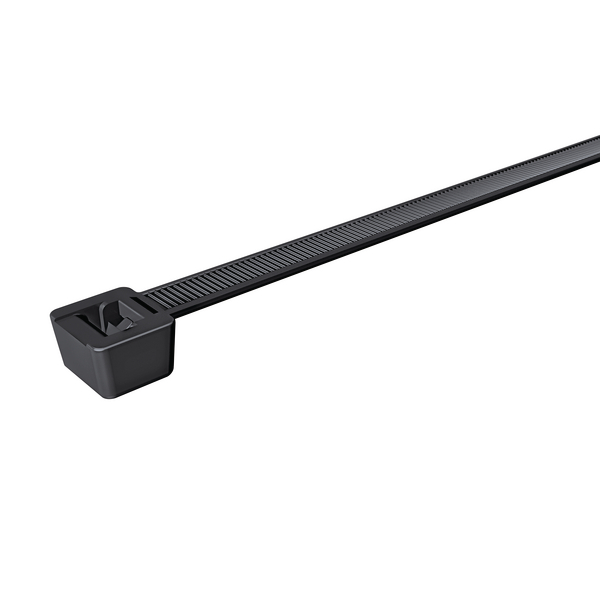

Cable tie inside serrated, 300x7.6mm, ⌀4.8-80.0mm, black, 100pcs.
Art.-No. 111-12230
| T120I-PA66W-BK
|
Copied
- UV-resistant black cable tie available in a wide range of sizes
- Made from 100 % high quality plastic, allows for good recycling
- Inside serration for a strong hold onto bundles
- Easy application either manually or with a processing tool
- Simple to insert due to bent tail
Show more
Show less
Request quote
More products in this product group:
| Application | These inside serrated cable ties are made of UV-resistant Polyamide 6.6 (PA66W) and thus suitable for outdoor applications. UV stabilized cable ties resist UV radiation for a considerably longer period compared to standard PA66 cable ties. They can easily be used for bundling and securing cables, pipes and hoses especially in outdoor areas. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Local order number | T120I.WB3P |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Min.Tensile Strength | 535N |
| PART DESCRIPTION | T120I-PA66W-BK |
| Package Content | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | T-Series in PA66W black |
| Product Group | Cable Ties for outdoor use (UV-resistant) |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 300x7.6 mm UV-black |
| Tie Closure | plastic pawl |
| Type | T120I |
| UV-Stabilised | Yes |
| UV-Stabilised Reference | IEC62275 |
| Variant | Inside Serrated |
| Weight/Unit | 0.003kg |
|
|
|
| Bundle ⌀ | 4.8-80.0mm |
| Bundle ⌀ max. | 80.0mm |
| Bundle ⌀ min. | 4.8mm |
| Cable Tie Head Length (metric) | 10.2mm |
| Cable Tie Head Width (metric) | 13.0mm |
| Height (H) | 7.7mm |
| Length (L) | 300mm |
| Strap Width max. (G) | 7.61mm |
| Strap Width max. (G) (imperial) | 0.30" |
| Strap Width max. (G) (imperial) | 0.51" |
| Thickness (T) | 1.6mm |
| Width (W) | 7.6mm |
| ELV compliant Dir. Art. 4 (2) | Yes |
| EPD File Link | Link |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | IEC 62275:2006 |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660011788 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.406m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00329672m³ |
| Packaging 1 - Weight (kg) | 0.420001kg |
| Packaging 1 - Width (m) | 0.203m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 9.13002kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 204.6kg |
| Packaging 4 - Width (m) | 0.8m |
