28/03/2024

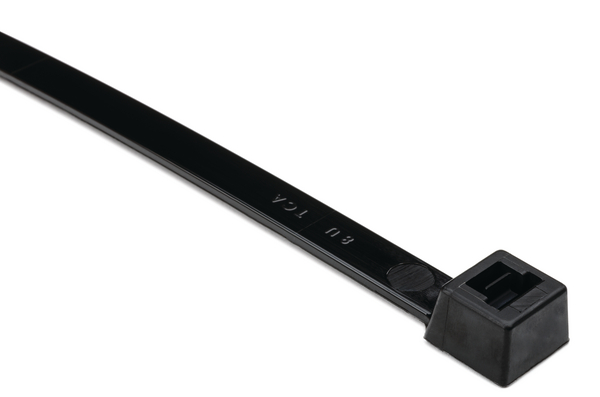

Cable tie inside serrated, 391.16x8.9mm, Ø8.0-105.0mm, black, 25pcs.
Art.-No. 111-15206 | T150R(U)-PA66UV-BK Details

  • UV-resistant black cable tie available in a wide range of sizes
  • Made from 100 % high quality plastic, allows for good recycling
  • Inside serration for a strong hold onto bundles
  • Easy application either manually or with a processing tool
  • Simple to insert due to bent tail
Show more

Request your individual offer now

e-Learning
Application These inside serrated cable ties are made of UV-resistant Polyamide 6.6 (PA66W) and thus suitable for outdoor applications. UV stabilized cable ties resist UV radiation for a considerably longer period compared to standard PA66 cable ties. They can easily be used for bundling and securing cables, pipes and hoses especially in outdoor areas.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK9P, MK9P w/ Upper air, MK10-SB, EVO9, EVO9SP, EVO9HT
Colour Black (BK)
Identification Plate Position none
Local order number T150R(U).NB1P
Material Polyamide 6.6, UV-resistant (PA66W)
Pack Cont. 25pcs.
Package Content packed in Bag
PART DESCRIPTION T150R(U)-PA66UV-BK
Product Family T-Series in PA66W black
Product Group Cable Ties for outdoor use (UV-resistant)
Releasable Closure (Yes/No) No
Variant Inside Serrated
Bundle Diameter max (Metric) 105.0mm
Bundle ∅ 8.0-105.0mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (metric) 9.5mm
Length (L) 391.16mm
Min.Tensile Strength 780N
Thickness (T) 1.9mm
Width (W) 8.9mm
CE Certification Yes
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Plenum Rating AH-2
Specifications
Specifications UL 62275
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026312675
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
