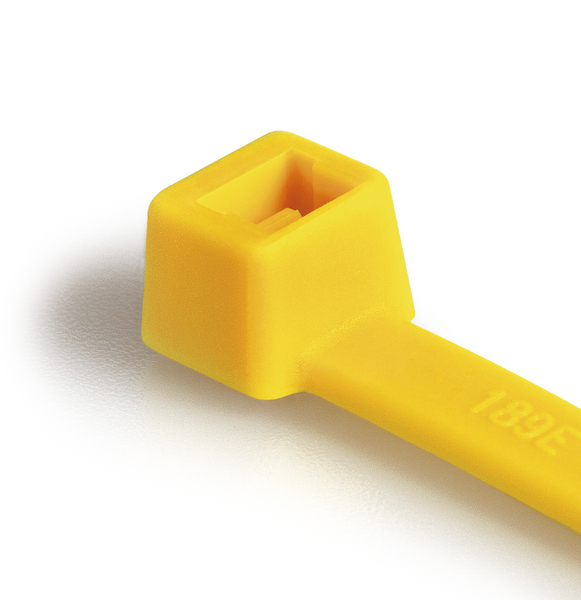

Cable tie inside serrated, 100x2.45mm, Ø1.5-22.0mm, yellow, 100pcs.
Art.-No. 116-01814 | T18R-PA66-YE Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Yellow (YE)
Identification Plate Position none
Local order number T18R.NY3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T18R-PA66-YE
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T-Series in PA66 coloured
Product Group Cable ties polyamide 6.6 standard
Releasable Closure (Yes/No) No
Short Description Cable Tie 100x2.5 yellow
Tie Closure plastic pawl
Type T18R
Variant Inside Serrated
Bundle Diameter max (metric) 22.0mm
Bundle ∅ 1.5-22.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Length (metric) 4.8mm
Cable Tie Head Width (metric) 4.45mm
Height (H) 3.7mm
Length (L) 100mm
Min.Tensile Strength 80N
Strap Width max. (G) (imperial) 0.18"
Thickness (T) 1.0mm
Weight/Unit 0.000283kg
Width (W) 2.45mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026108650
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.195m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00031
Packaging 1 - Weight (kg) 0.0333kg
Packaging 1 - Width (m) 0.105m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 8000
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 2.819kg
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 32000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 12.026kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 640000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 261.52kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
