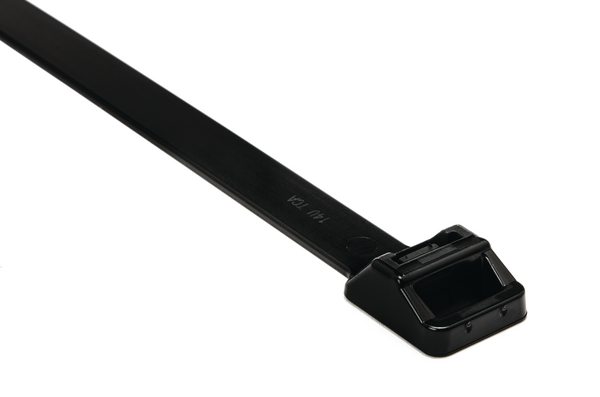

Cable tie inside serrated, 1030.0x12.4mm, ∅12.0-305.0mm, black, 25pcs.
Art.-No. 111-25200 | T250XL-PA66-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning

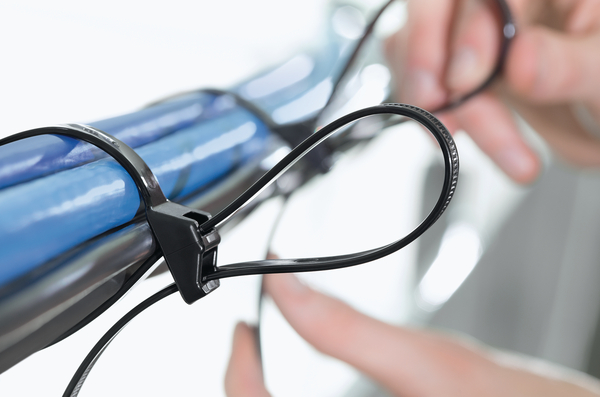

Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Identification Plate Position none
Local order number T250XL.NB1P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T250XL-PA66-BK
Pack Cont. 25pcs.
Package Content packed in Bag
Product Family T-Series in PA66 black
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Short Description Cable Tie 1030x12.5 black
Tie Closure plastic pawl
Type T250XL
Variant Inside Serrated
Bundle Diameter max (metric) 305.0mm
Bundle ∅ 12.0-305.0mm
Bundle ∅ min. 12.0mm

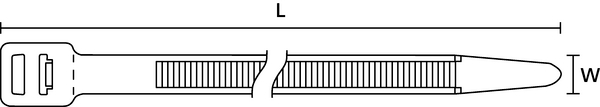

Length (L) 1030.0mm
Min.Tensile Strength 1115N
Weight/Unit 0.015436kg
Width (W) 12.4mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026289083
Packaging 1 - Height (m) 0.043m
Packaging 1 - Length (m) 0.602m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00365
Packaging 1 - Weight (kg) 0.385901kg
Packaging 1 - Width (m) 0.141m
Packaging 3 - Height (m) 0.138m
Packaging 3 - Length (m) 1.178m
Packaging 3 - Qty 250
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0387
Packaging 3 - Weight (kg) 4.44901kg
Packaging 3 - Width (m) 0.238m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 6000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 127.776kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
