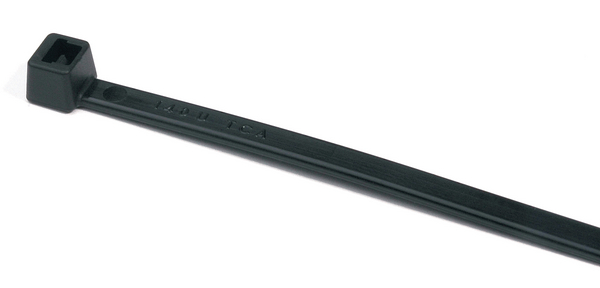

Cable tie inside serrated, 365.0x3.6mm, Ø1.5-105.0mm, black, 100pcs.
Art.-No. 111-02901 | T30XL-PA66-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK9P, MK9P w/ Upper air, MK10-SB, MK20, MK21, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Identification Plate Position none
Local order number T30L(U).NB3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T30XL-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T-Series in PA66 black
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Short Description Cable Tie 365x3.5 black
Tie Closure plastic pawl
Type T30XL
Variant Inside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ 1.5-105.0mm
Bundle ∅ min. 1.5mm
Length (L) 365.0mm
Min.Tensile Strength 135N
Width (W) 3.6mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Plenum Rating AH-2
ROHS compliant Yes
Specifications
Specifications UL 62275
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 4031026311807
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Weight (kg) 11.12kg
Packaging 3 - Width (m) 0.396875m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
