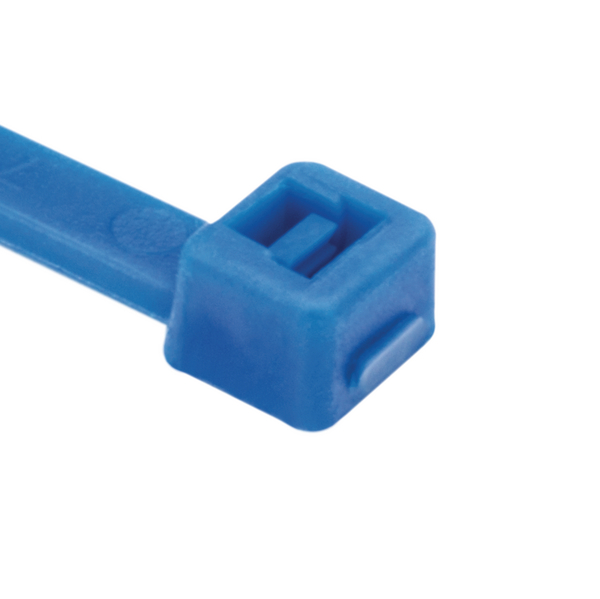

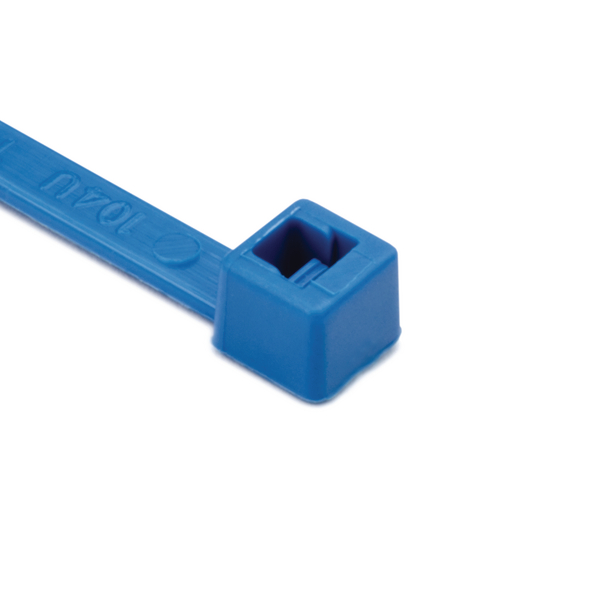

Cable tie inside serrated, 150.0x3.5mm, Ø3.0-36.0mm, blue, 100pcs.
Art.-No. 111-00698 | T30R-E/TFE-BU Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Blue (BU)
Identification Plate Position none
Local order number T30R-TZ
Material Ethylene Tetrafluoroethylene (E/TFE)
PART DESCRIPTION T30R-E/TFE-BU
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T-Series in E/TFE (Tefzel®)
Product Group Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene
Releasable Closure (Yes/No) No
Short Description Cable Tie 150x3.5 E/TFE blue
Tie Closure plastic pawl
Type T30R
Variant Inside Serrated
Bundle Diameter max (metric) 36.0mm
Bundle ∅ 3.0-36.0mm
Bundle ∅ min. 3.0mm
Cable Tie Head Height (metric) 4.0mm
Length (L) 150.0mm
Min.Tensile Strength 133.3N
Thickness (T) 1.2mm
Weight/Unit 0.001151kg
Width (W) 3.5mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Operating Temperature -80 °C to +170 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E64962
UV-Stabilised No
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387127416
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0006
Packaging 1 - Weight (kg) 0.1151kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0296
Packaging 3 - Weight (kg) 11.75kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 250000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 314.75kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
