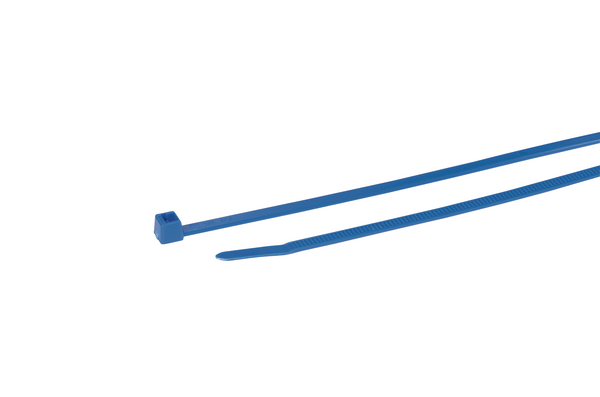

Cable tie inside serrated, 202.0x4.7mm, Ø5.0-50.0mm, blue, 100pcs.
Art.-No. 111-00732 | T50R-E/TFE-BU Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Blue (BU)
Identification Plate Position none
Local order number T50R-TZ
Material Ethylene Tetrafluoroethylene (E/TFE)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION T50R-E/TFE-BU
Product Family T-Series in E/TFE (Tefzel®)
Product Group Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene
Releasable Closure (Yes/No) No
Short Description Cable Tie 200x4.6 E/TFE blue
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 5.0-50.0mm
Bundle ∅ min. 5.0mm
Cable Tie Head Height (metric) 6mm
Length (L) 202.0mm
Min.Tensile Strength 222.3N
Thickness (T) 1.5mm
Weight/Unit 0.002565kg
Width (W) 4.7mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Operating Temperature -80 °C to +170 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64962
UV-Stabilised No
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387133417
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.31m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00116
Packaging 1 - Weight (kg) 0.256501kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.44m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0341
Packaging 3 - Weight (kg) 13.54905kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 346.176kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
