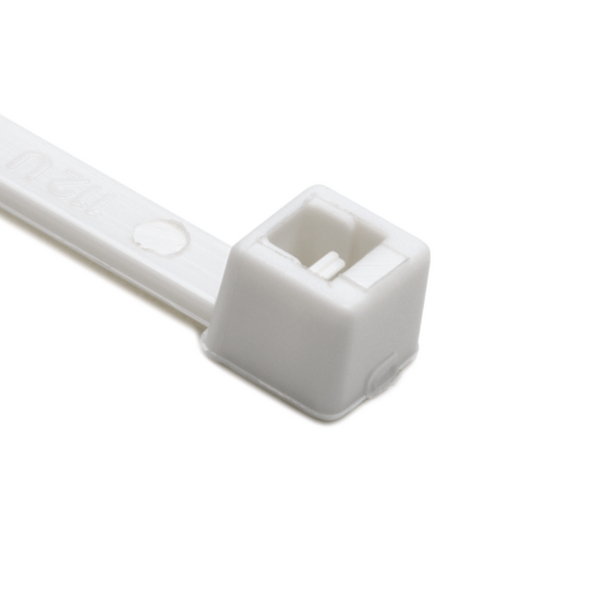

Cable Ties for higher chemical resistance for temperatures up to +115 °C in Polypropylene T30R

T-Series in PP, Article number: 111-03017

Features

  • Polypropylene cable ties for higher chemical resistance
  • Can withstand continuous operating temperatures up to 115 °C
  • Different sizes available in black and natural colour
  • Due to its low-density PP cable ties can float on water
  • Less hydroscopic material, almost no water absorption

Certifications & Approvals

Application

T-Series cable ties made from Polypropylene (PP) are less hydroscopic and offer a higher chemical resistance and temperature range compared to a standard Polyamide 6.6 (PA66) material. Cable ties from Polypropylene can withstand continuous operating temperatures up to +115 °C. These cable ties are used to bundle and secure cables, pipes and/or hoses.

T-Series in PP is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie polypropyleen 150x3.5 natural
GLOBAL PART DESCRIPTION T30R-PP-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family T-Series in PP
Product Group Cable Ties for higher chemical resistance for temperatures up to +115 °C in Polypropylene
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T30R.PN3P
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 8.0mm
Length (L) 150.0mm
Min.Tensile Strength 89.0N
Thickness (T) 1.2mm
Width (W) 3.6mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Material Polypropylene (PP)
Operating Temperature - °C -40 °C to +115 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026413686
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00032
Packaging 1 - Weight (kg) 0.07kg
Packaging 1 - Width (m) 0.1m
Weight 0.07kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
