20/07/2024

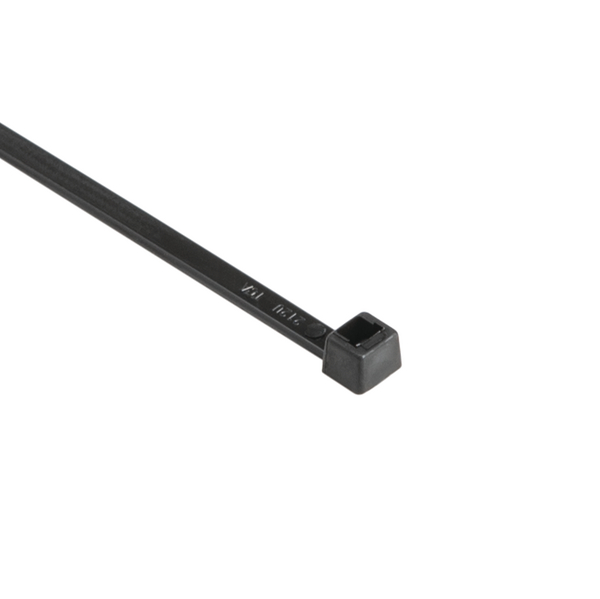

Cable tie inside serrated, 202.0x4.6mm, ∅12.7-44.5mm, black, 100pcs.
Art.-No. 111-04928 | T50R-PP-BK Details

  • Polypropylene cable ties for higher chemical resistance
  • Can withstand continuous operating temperatures up to 115 °C
  • Different sizes available in black and natural colour
  • Due to its low-density PP cable ties can float on water
  • Less hydroscopic material, almost no water absorption
Show more

Request your individual offer now

e-Learning
Application T-Series cable ties made from Polypropylene (PP) are less hydroscopic and offer a higher chemical resistance and temperature range compared to a standard Polyamide 6.6 (PA66) material. Cable ties from Polypropylene can withstand continuous operating temperatures up to +115 °C. These cable ties are used to bundle and secure cables, pipes and/or hoses.

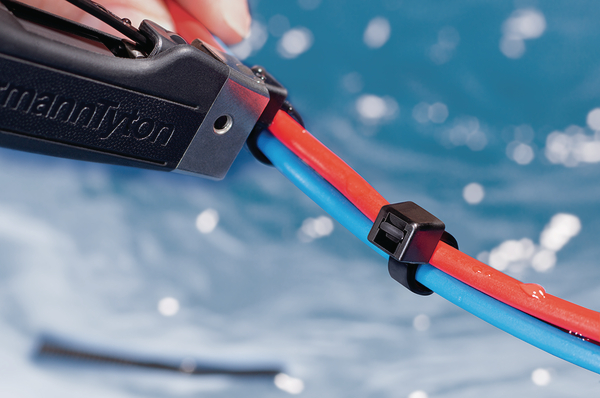

Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)
Identification Plate Position none
Local order number T50R.PB3P
Material Polypropylene (PP)
PART DESCRIPTION T50R-PP-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T-Series in PP
Product Group Cable Ties for higher chemical resistance for temperatures up to +115 °C in Polypropylene
Releasable Closure (Yes/No) No
Short Description Cable tie 202x4.6 mm, PP, black
Tie Closure plastic pawl
Type T50R
Variant Inside Serrated
Bundle Diameter max (metric) 44.5mm
Bundle ∅ 12.7-44.5mm
Bundle ∅ min. 12.7mm
Cable Tie Head Height (metric) 5.9mm
Cable Tie Head Length (metric) 7.3mm
Cable Tie Head Width (metric) 7.6mm
Length (L) 202.0mm
Min.Tensile Strength 110N
Strap Width max. (G) (imperial) 0.3"
Thickness (T) 1.2mm
Weight/Unit 0.001kg
Width (W) 4.6mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +115 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026311906
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00056
Packaging 1 - Weight (kg) 0.1kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 5.62kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 133.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
