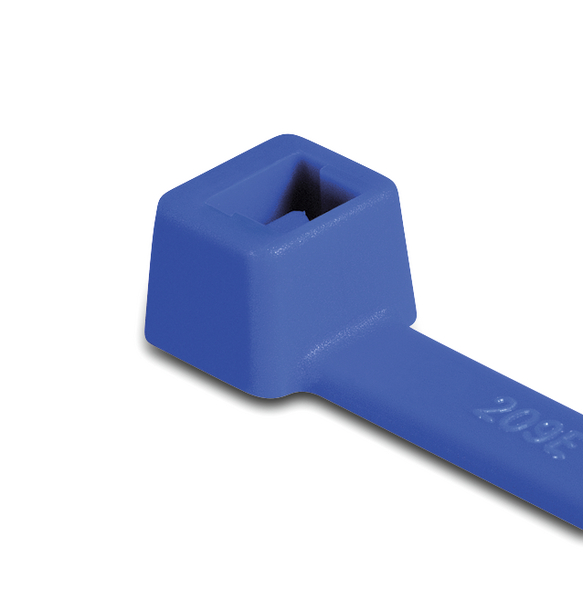

Cable Ties Polyamide 6.6 standard T50L

T-Series in PA66 coloured, Article number: 111-05404

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

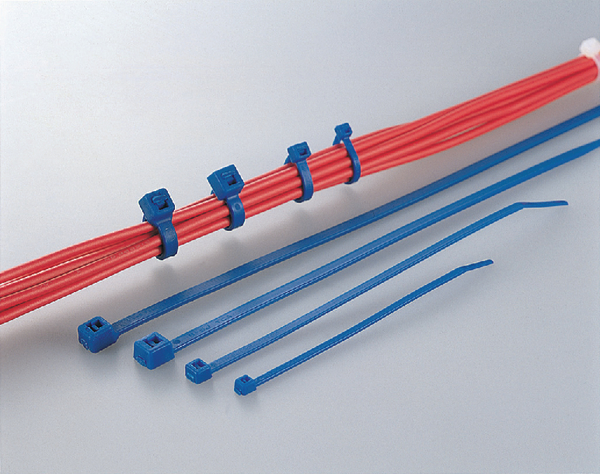

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series in PA66 coloured is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Cable Tie 390x4.6 blue
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION T50L-PA66-BU
Product Family T-Series in PA66 coloured
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50L.NL3P
Variant Inside Serrated
Bundle ∅ max. 110mm
Bundle ∅ min. 1.5mm
Length (L) 390.0mm
Min.Tensile Strength 225N
Thickness (T) 1.4mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications IEC 60092 series
EAN / GTIN 5022660322488
Packaging 1 - Height (m) 0.102m
Packaging 1 - Length (m) 0.535m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00764
Packaging 1 - Weight (kg) 0.27kg
Packaging 1 - Width (m) 0.14m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 11.602kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 253.04kg
Packaging 4 - Width (m) 0.8m
Weight 0.27kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
