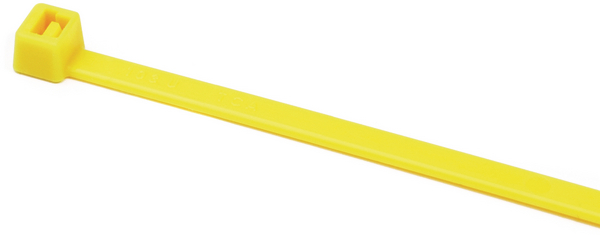

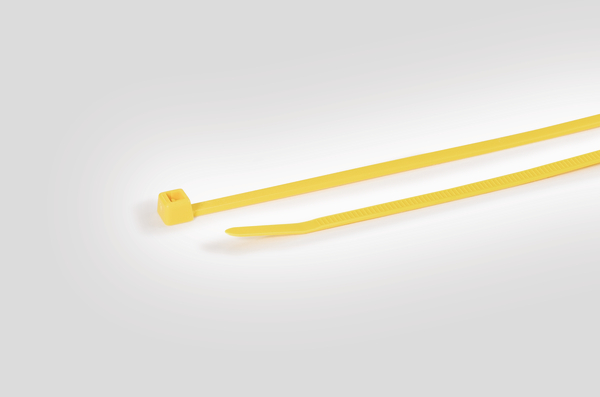

Cable Ties Polyamide 6.6 standard T50R

T-Series in PA66 coloured, Article number: 111-04805

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series in PA66 coloured is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Yellow (YE)
Description Short (BMEcat) (max. 150 characters) Cable Tie 200x4.6 mm yellow
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION T50R-PA66-YE
Product Family T-Series in PA66 coloured
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50R.NY3P
Variant Inside Serrated
Bundle ∅ max. 50.0mm
Bundle ∅ min. 1.5mm
Length (L) 200mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications IEC 60092 series
EAN / GTIN 5022660018992
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.221m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00123
Packaging 1 - Weight (kg) 0.15kg
Packaging 1 - Width (m) 0.146m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.802kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 217.04kg
Packaging 4 - Width (m) 0.8m
Weight 0.15kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
