28/05/2024

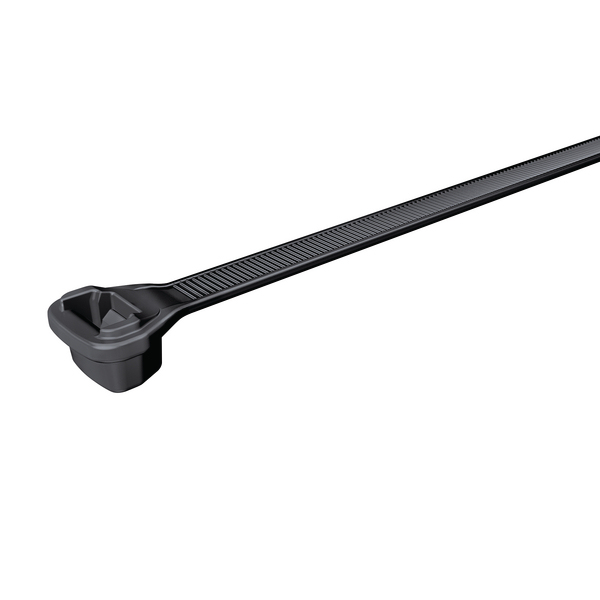

Cable tie inside serrated, 369x7.7mm, Ø5.0-100mm, black, 200pcs.
Art.-No. 108-00041 | X120R-PA66HIRHS-BK Details

  • Inside serrated cable tie
  • High tensile strength around cable bundles
  • Smooth, rounded head design
  • Space saving solution
  • Improved ergonomic design
  • Provides a secure fastening with no lateral movement
Show more
Package size

Request your individual offer now

e-Learning
Application The X-Series range of cable ties provides a new and improved design compared with standard cable ties, delivering a range of benefits and enhanced performance. With a new streamlined design and smaller head, the X-Series cable ties provide a superior fixing solution for tight applications, whilst also benefiting from a better grip around the bundle. This professional cable tie range is available in weather resistant and high impact / heat stabilised materials, ensuring these fixings consistently perform well both at high temperatures and in cold environments.
Application Tool EVOcut, MK10-SB, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Identification Plate Position none
Local order number X120R.SB4P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION X120R-PA66HIRHS-BK
Pack Cont. 200pcs.
Package Content packed in Bag
Product Family X-Series
Product Group Cable ties with smart design
Releasable Closure (Yes/No) No
Short Description Cable Tie 369x7.7 with rounded head design PA66HIRHS black
Tie Closure plastic pawl
Type X120R
Variant Inside Serrated
Bundle Diameter max (metric) 100mm
Bundle ∅ 5.0-100mm
Bundle ∅ min. 5.0mm
Length (L) 369mm
Min.Tensile Strength 535N
Thickness (T) 1.6mm
Weight/Unit 0.00453kg
Width (W) 7.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Specifications IEC 62275, UL 62275
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660342479
Packaging 1 - Height (m) 0.066m
Packaging 1 - Length (m) 0.409m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00642
Packaging 1 - Weight (kg) 0.906001kg
Packaging 1 - Width (m) 0.238m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 11.674012kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 254.48kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
